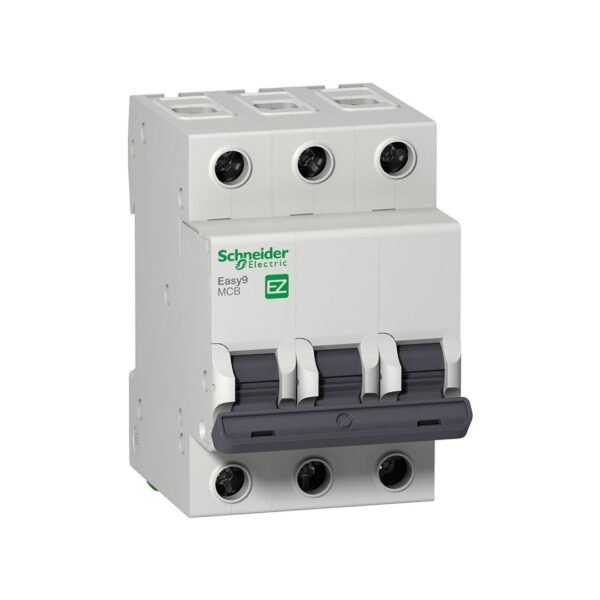

Schneider ez9f34340 Easy9 3p 40a 4.5ka C type automatic insurance 3pcs

Serial Easy9
Device Application Distribution
Product or component type miniature circuit cutter
Product Group Easy9 McB
POLES 3P
Number of protected poles 3
[In] Nominal Current 40 A
Network Type AC
OPENING UNIT TECHNOLOGY Thermal Magnetic
Tilty Code C
Cutting Capacity 4500 A ICN 230 V AC 50/60 Hz
400 V AC in 4500 A ICN 50/60 Hz, 60898-1
Compliance with insulation is suitable for yes, 60898-1
Network Frequency 50/60 Hz
[UE] Nominal Working Voltage 400 V AC 50/60 Hz
Magnetic Opening Limit 5 … 10 x In
[ICS] Nominal Service Cutting Capacity 4.5 KA 100 % X ICN 400 V AC 50/60 Hz
[Ui] Nominal Insulation Voltage 500 V AC 50/60 Hz
[UIMP] Nominal Pulse Resistance Voltage Compatibly to 4 KVICEEC 60898-1
contact location indicator yes
Control Type
Device without signaling
Assembly type can be installed
assembly support DIN RAYA
9 mm screw step 6
height 81 mm
Width 54 mm
Depth 66.5 mm
Color Gray (Ral 7035)
Mechanical durability 10000 Cycles
Electric strength 4000 Cycles
Connections – Terminals Tunnel Type Type Terminal (upper or Alt) 1… 25 mm² flexible
Tunnel Type Terminal (top or bottom) 1… 35 mm² hard
Squeezing torque 3.5 N.M top or bottom
No soil leak protection
