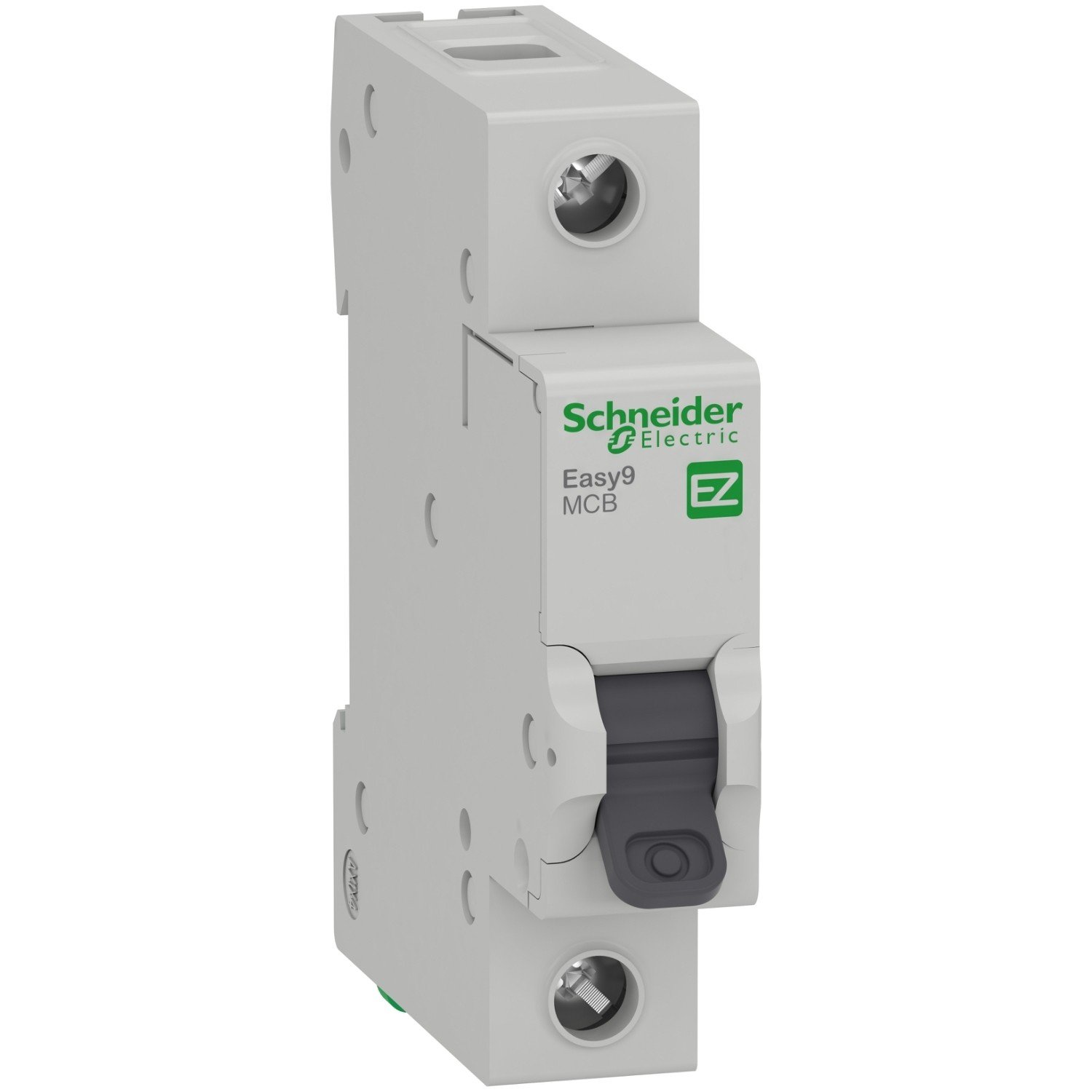

Schneider ez9f43104 Easy9 Series C Type 1x4A Automatic Insurance

Commemorative short-circuit cutting capacity increases up to 3000a in 230VAC in accordance with IEC 60898-1 standard and is 25ka / 24 … 48VDC in accordance with EN / IEC 60947-2 standard
Compatible with IEC 60898-1 standard
This product has short circuit protection and cable protection against excessive loads
According to the location of the arm, there is an indicator of a malfunction on the front panel (O-I SAFET)
This product is for housing and small commercial buildings
It has electrical strength up to 4000 revolutions and mechanical resistance up to 10000 revolutions
UE Working Voltage 230Vac Ui Commemoration Insulation Voltage is 500VAC
Uimp Commemoration Pulse Durability Voltage 4KV Working Frequency 50Hz or 60hz
Modular can be installed on DIN rail for installation
Product color is light gray (RAL7035)
Size (G) 18mm x (Y) 81mm x (D) 66.5mm
According to IEC 60529 standard, the degree of protection in box
IP20 and IP40 operating temperature -25 ° C to 60 ° C storage temperature -40 ° C to 85 ° C.
