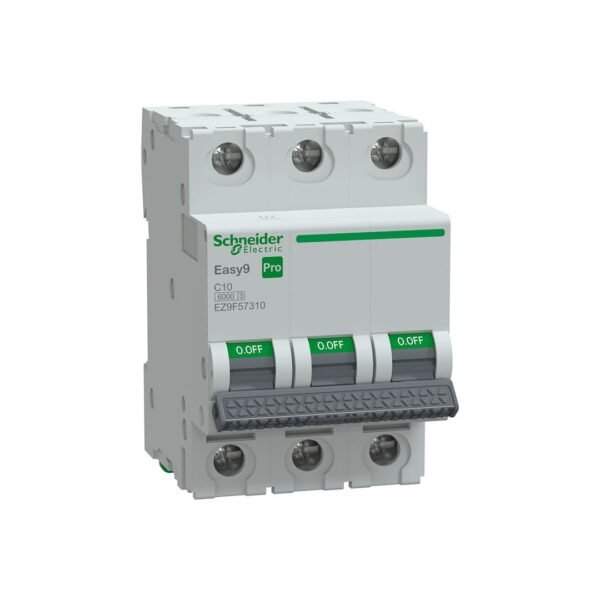

Schneider ez9f57310 Easy 9 pro 3p 10a 6 ka C type automatic insurance 4pcs

Serial Easy9 Pro
Device Application Distribution
Product or component type miniature circuit cutter
Product Group Easy9 Pro McB
POOL DESCRIPTION 3P
Number of protected poles 3
[In] Nominal Current 10 A
Network Type AC
OPENING UNIT TECHNOLOGY Thermal Magnetic
Tilty Code C
Compliance with insulation is suitable for yes/EN 60898-1
Network Frequency 50/60 Hz
[UE] Nominal Working Voltage 415 V AC 50/60 Hz
Magnetic opening limit 5 … 10 x
Cutting Capacity 6000 A ICU -415 V AC 50/60 Hz
[ICS] Nominal Service Cutting Capacity 6000 A 100 % Compatibility to 60898-1 – 415 V AC 50/60 Hz
limitation class 3
[Ui] Nominal Insulation Voltage 500 V AC 50/60 Hz
[UIMP] Nominal Pulse Resistance Voltage Compatibly to 4 KV/EN 60898-1
contact location indicator yes
Control Type
Signaling on the Device Open/Closed Indicator
Assembly type can be installed
Assembly support DIN RAYA
Comb Busbar Distribution Bloc Compatibility Top: Pin Type
Alt: Pin/Fork Type
9 mm screw step 6
Height 85 mm
Width 54 mm
Depth 77 mm
Product weight 306 g
Color Gray (Ral 7035)
Mechanical durability 20000 Cycles
Electric strength 10000 Cycles
YEZ YESS
Connections – Terminals Tunnel Type Type Terminals (Alt) 1… 16 mm² flexible
Tunnel Type Terminals (Alt) 1… 25 mm² hard
Squeezing torque 2 N.M
