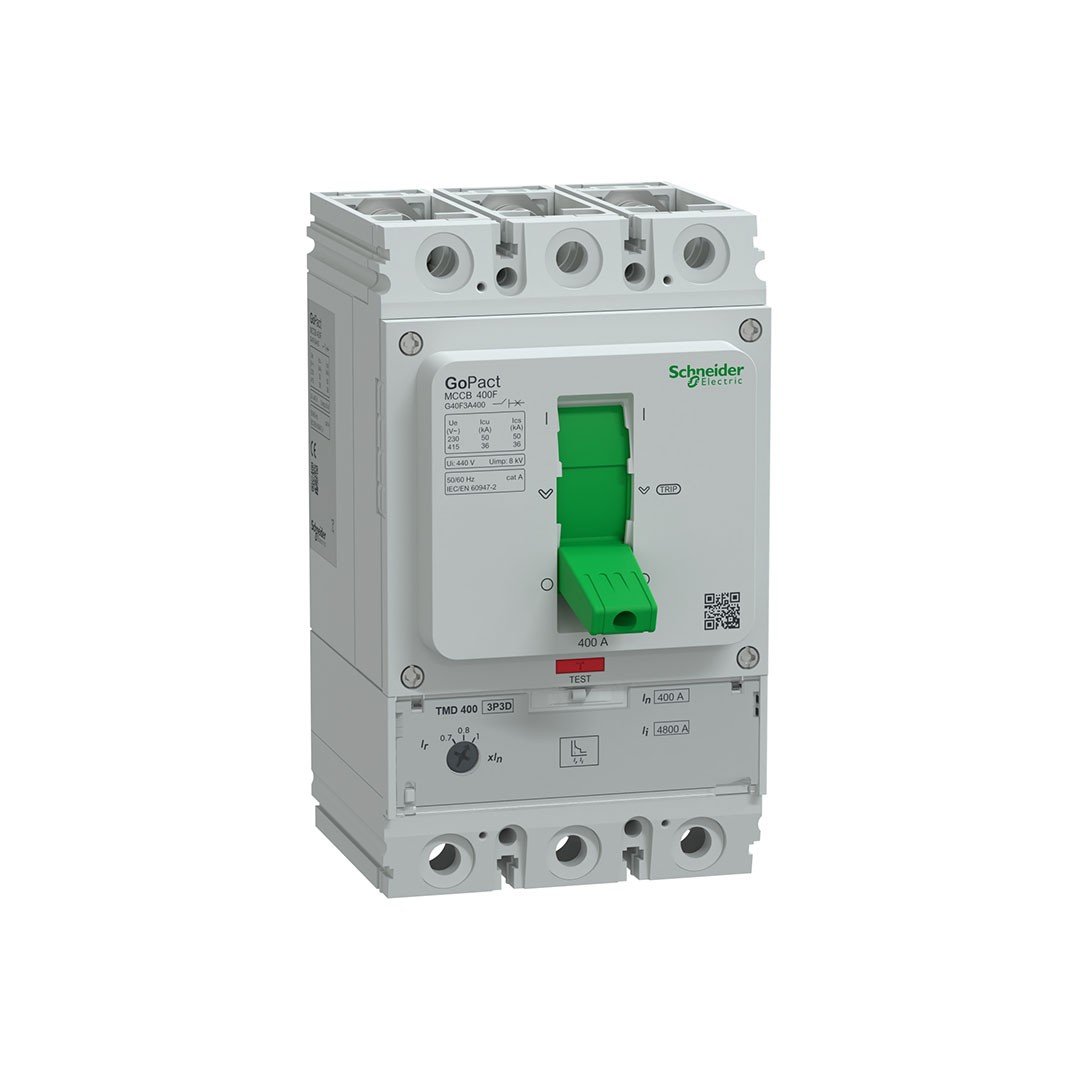

Schneider G40F3A400 GOPACT MCCB 400F 3P3D 400A setting field switch

Product Series Gopact McCB
Product or component type circuit cutter
Product Name Gopact McCB 400
Device Application Distribution
POOL DESCRIPTION 3P
Protected Pole Description 3D
[In] Nominal Current 400 A -DE 40 ° C
[UE] Nominal Working Voltage 415 V AC 50/60 Hz suitable for Hz/IEC 60947-2
Suitable for insulation is suitable for yes/IEC 60947-2
Usage Category Category A
[ICU] Rate Ultimate Short-Circuit Breaking Capacity 36 Ka Icu-DE 380/415 V AC 50/60 Hz
45 Ka ICU -220/230 V AC 50/60 Hz suitable for Hz/IEC 60947-2
Performance Level F 36 KA 380/415 V AC
OPENING UNIT NAME TM-D
OPENING UNIT TECHNOLOGY Thermal Magnetic
OPENING UNIT PROTECTION FUNCTIONS
Control Type
Circuit Breaker Mounting Mode Fixed
[Ui] Nominal Insulation Voltage Suitable for 440 V AC/IEC 60947-2
[UIMP] Nominal Pulse Resistance Voltage Uygun/IEC 60947-2
[ICS] RED SERVICE SHORT-CIRCUIT BREING CAPACITY 36 KA-DE 380/415 V AC 50/60 Hz
45 KA -DE 220/230 V AC 50/60 Hz suitable for Hz/IEC 60947-2
Mechanical Durability 15000 Cycles
Electric resistance 5000 Cycles -415 V In
Power distribution per pole 40 W
Assembly support back plate
assembly location horizontal and vertical
Flat on his back
Upper connection front
Breaking front front
Connection Terminals Screw Terminals
Connection range 40 mm
Protection Type L: for Overload Protection (Thermal)
I: for short circuit protection (magnetic)
OPENING UNIT DEGREE 400 A -DE 40 ° C
Long-Time Pick-Up Adjustment Type IR (Thermal Protection) Adjustable
[IR] Long-Time Protection Pick-Up Adjustment Range 0.7 … 1 x In
Long-Time Protection Delay Adjustment Type tr fixed
Instantaneous Protection Pick-Up Adjustment Type Ii Fixed
[Ii] Instantantous Protection Pick-Up Adjustment Range 12 x In
Width (W) 120 mm
Height (H) 205 mm
Depth (D) 105 mm
Product weight 3.5 kg
Color Gray (Ral 7035)
