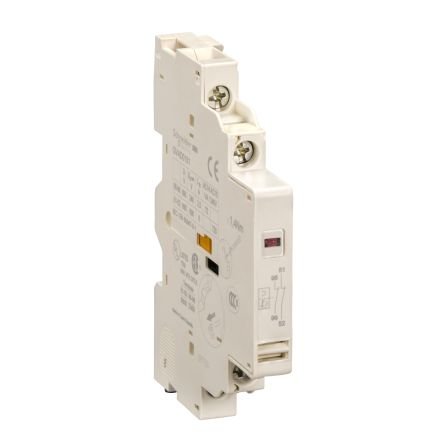

Schneider GVAD0110 GV3 assistant contact block 1na

serial tesys
Tesys Deca
Product Group GVAD
Product or component type assistant contact block
Product Compatibility GV2ME
GV2L
GV3P
GV2P
GV3L
GV2le
Gv2rt
assembly location left side
ASSISTANCE CONTACT WORKING ERROR SIGNAL 1 NK
POOL REPORT Editing 1 NA + 1 NK
[Ui] Nominal Insulation Voltage Suitable for 690 V.IEC 60947-1
Suitable for 300 V 508
300 V is suitable for c22.2 no 14
[UE] Nominal Working Voltage 48 … 690 V AC
24 … 240 V DC
[Ith] Classic Open Air Thermal Current 6 A
2.5 A for error signaling
Mechanical durability 100000 Cycles
Minimum Switching Current 5 MA
Minimum switching voltage 17 V
Protection Type GB2CB … Circuit Cutter
GG Insurance 10 A
Nominal working power in VA 300 VA -48 V AC -15 -Electric Resistance: 100000 Cycles
414 VA -690 V AC -15 -Electric Sturification: 100000 Cycles
500 Va -110… 127 V AC -15 -Electrical Resurrection: 100000 Cycles
500 V AC -15 -ELECTRICITY DÜZGİLİ: 100000 CYCLES
650 VA -440 V AC -15 -ELECTRICAL RESISTANCE: 100000 CYCLES
720 VA -230… 240 V AC -15 -Electrical Resurrection: 100000 Cycles
850 VA -380… 415 V AC -15 -Electric Sturification: 100000 Cycles
36 VA -24 V AC -14 -Electric Sturification: 1000 Cycles
48 VA -48 V AC -14 -ELECTRIC RESISTANCE: 1000 CYCLES
72 VA -110… 127 V AC -14 -Electric Resurrection: 1000 Cycles
Nominal working power in W
140 W -DE 110 V DC -13 -Electric Sturification: 100000 Cycles
140 W -DE 24 V DC -13 -Electric Sturification: 100000 Cycles
180 W -DE 60 V DC -13 -Electric Sturification: 100000 Cycles
240 W -DE 48 V DC -13 -Electricity Resurrection: 100000 Cycles
15 W -DE 48 V DC -13 -Electric Sturification: 1000 Cycles
24 W -DE 24 V DC -13 -ELECTRIC RESISTANCE: 1000 CYCLES
9 W -DE 60 V DC -13 -Electric Sturification: 1000 Cycles
Squeezing torque 1.4 N.M – screw clamp terminals on
Height 89 mm
Width 9.3 mm
Depth 66 mm
Product weight 0.055 kg
Color Dark Gray
