Easy Harmony ET6
product or component type touch panel screen
Software Definition Vijeo Designer Basic
Operating System VXWORKS
Processor Name ARM Cortex-A8
screen size 7 inches
Screen Type Color TFT LCD
Screen color 16 million colors
Screen resolution 800 x 480 pixels wvga
Touch panel with one touch analog resistant
Brightness 16 level
Character Font ASCII
ASCII (European characters)
Chinese (Simplified Chinese)
Japanese (Ank, Kanji)
Katakana
Korean
Taiwanca (Traditional Chinese)
[US] Nominal Nutrition Voltage 24 VDC +/- 20 %
Sudden Current 30a
Local Signaling Status LED Green, Fixed for Working
Status LED Orange is fixed for the start of the software
Status LED is red, for power supply (open)
Situation LED is closed for power supply (closed)
Power consumption in W 9 W
Pages Number 200 Application Page
Processor Frequency 800 MHz
Memory Description Device Memory 256 MB
User Data Memory 256 MB
Backup Memory 128 KB
Integrated Connection Type 1 Com1 Series Connection – 1 SUB -D 9 Pin Men – RS232C (Speed: 2400 … 115200 BPS) subtitles
1 com2 series connection – 1 SUB -D 9 Pin Men – RS422/RS485 (Speed: 2400 … 115200 BPS) subtitles
Com2 Serial Connection (Speed: 2400 … 187500 BPS) Subtitle
1 USB 2.0 type micro Bback
External feeding
Real -time clock internal 0 … 50 ° C
Internal 10 … 90 % Rh
Downloadable Protocols Modbus
Unit
Third party protocols
Product brand Schneider Elektrik
Fixing mode 4 screws, 1.6 … 5 mm thick panel assembly
Cut Sizes 190 x 135 mm Panel cutting size
Height 151mm
Width 206 mm
Depth 45mm
Net weight 0.60 kilos
Opener Panels - HMI
Order by WhatsApp
Compare

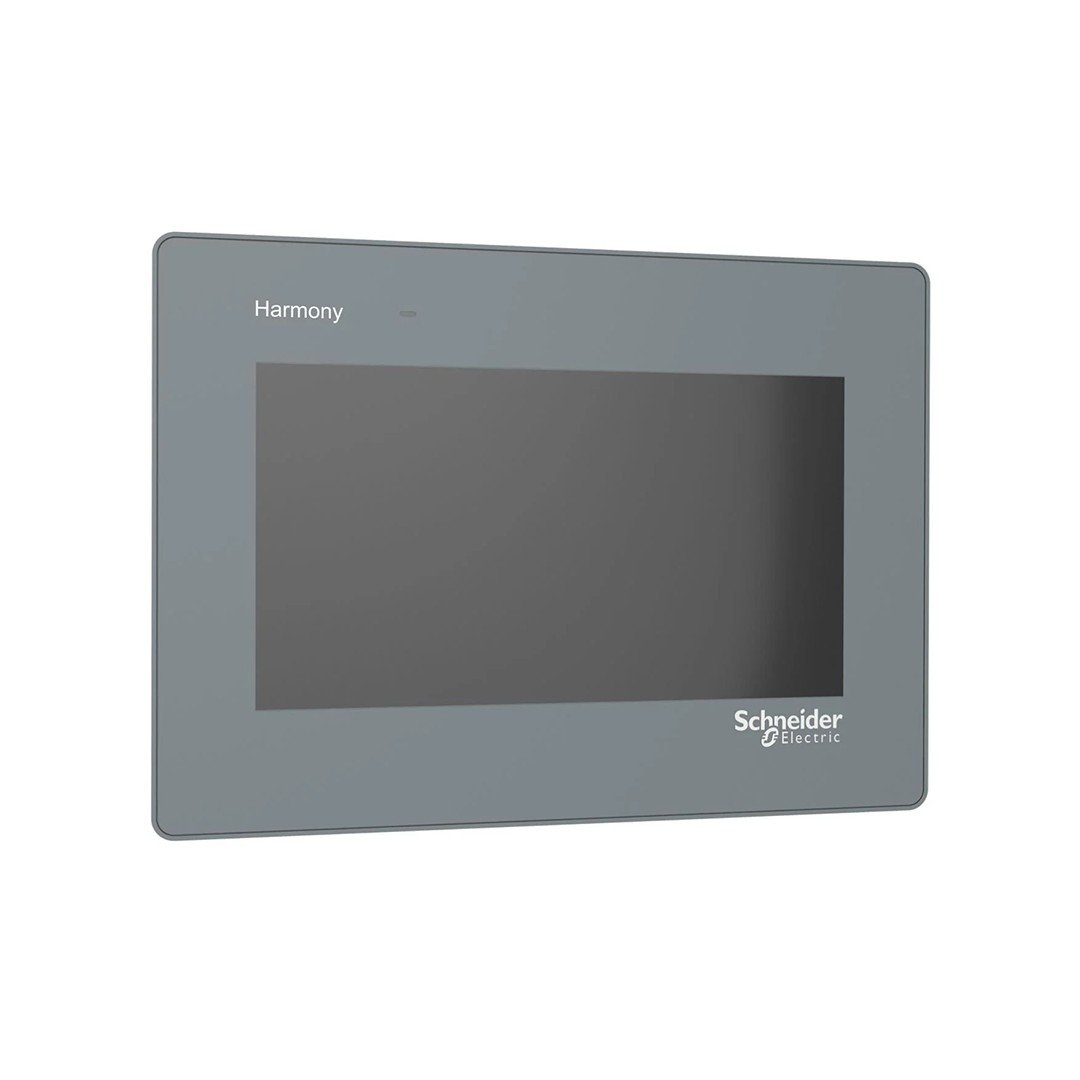

Schneider HMIET6401 16M Colors, Com X 2, USB Device, RTC, DC24V 7 -inch touch screen
Schneider HMIET6401 16M Colors, Com X 2, USB Device, RTC, DC24V 7 -inch touch screen by SCHNEIDER is a professional opener panels – hmi designed for industrial automation applications.
×
