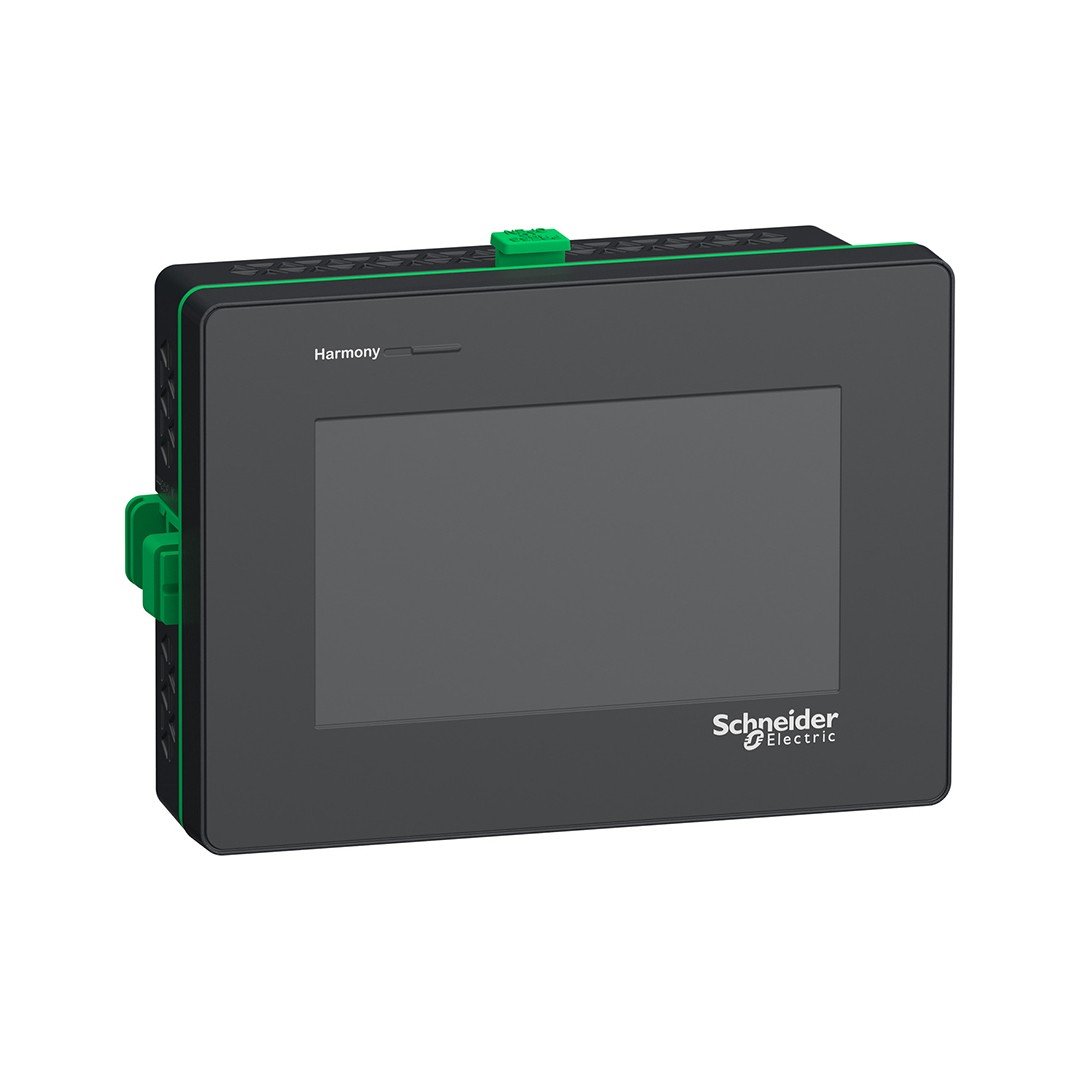

Schneider HMISTM6200 4 ‘inch 1 com 2 ethernet HMI touch panel screen

Product series
HARMONY ST6
Product or component type
Touch panel screen
software display
EcoTruxure Operator Terminal Expert
processor name
ARM CORTEX-A8
Complement
screen size
4 inch
screen type
Color TFT LCD
screen color
16 million colors
screen resolution
480 x 272 Pixels
touch panel
Single Touch Analog resistant
Back Lighting Life
White for 20000 hours
brightness
16 levels
Character Font
Ascı
ASCII (European characters)
Chinese (Simplified Chinese)
Japanese (Ank, Kanji)
Katakana
Korean
Taiwanca (Traditional Chinese)
[US] Nominal Nutrition Voltage
24 V DC (+/- 20 %)
Departure current
30 A
local signaling
The status is green for LED, non -online for fixed
The situation is working for LED green, fixed
The situation works for LED for green, flashing
The situation is green for led, for the extinguishing
Status LED is an orange, software is started for flashing
Status LED Red, Power Nutrition for Fixed (on)
The situation works for LED red, flashing for flashing
Status LED Red, Power Nutrition for Off (Off)
power consumption
7.8 W
Number of Pages
200 Application Page
processor frequency
800 MHz
Port Ethernet
10/100Base
memory description
Device Memory 1 GB
User Data Memory 128 MB
Spare Memory 512 KB
integrated connection type
1 COM1 Series Connection – Female RJ45 – RS232C/RS485 (Speed: 2400 … 115200 BPS) subtitles
1 USB 2.0 Type ABACK
1 USB 2.0 Type Micro Bback
2 Ethernet – Female RJ45alt
supply
External feeding
real -time clock
Internal 0 … 50 ° C
Internal 10 … 90 % Rh
Protocols that can be loaded from across
Modbus
Unit
Third Party Protocols
product brand
Schneider Electric Modicon
Mitsubishi Melsec
Omron Sysmac
Rockwell Automation Allen-Bradley
Siemens Simatic
fixing mode
Ø 22 mm hole, assembly location 1.5-6 mm Fine Panel is suitable for 61010-2-201
Ø 22 mm hole 61131-2
Ø 22 mm Hole
conservation material
PC
front material
Plastic
Marking
CE
cut dimensions
Ø 22.5 mm
height
108.2 mm
Width
145.6 mm
Depth
53.9 mm
Product weight
0.49 kg
Environment
immune to micro breaks
2 ms
Standards
EN 61000-6-4
EN 61000-6-2
EN 61131-2
Ul 61010-2-201
CSA C22.2 No 61010-2-201
CSA C22.2 No 213
Product Certificates
CSA
CE
EAC (Pending)
KC
Ul Class 1 Part 2
directives
2014/35/EU – Low Voltage Direction
2014/30/EU – Electromagnetic Compatibility
Air Air Temperature for Working
0… 50 ° C
Storage environment conditions
-20… 60 ° C
relative humidity
10… 90 % No condensation
working height
2000 m
IP protection degree
SUITABLE FOR IP20. 61131-2 (Back Panel)
SUITABLE FOR IP65. 61131-2 (Front Panel)
Nema Protection Degree
NEMA 4 front panel (interior use)
NEMA 13 Front Panel (in Enclosure)
impact resistance
11 ms for 147 m/s² (for 10 cycles X, Y, Z (approximately 100 minutes)) suitable for the/IEC 61131-2
vibration resistance
+/- 3,5 mm [area] (F = [area] 5… 9 Hz) 10 For cycles X, Y, Z (approximately 100 min)
9.8 m/s² [area] (F = [area] 9… 150 Hz)
electromagnetic compatibility
Electricity Fast Temporary/Explosion Immunization Test-Test Level: 2 KV (Power Ports)
Electricity Fast Temporary/Explosion Immunization Test – Test Level: 1 KV (Signal Ports)
Electrostatic discharge immune test-test level: 6 KV (contact discharge)/IEC 61000-4-2 Level 3
Electrostatic discharge immune test – test level: 8 kV (air discharge)
