Schneider KSA400ET4AF70 – Electric, KSA400 Series

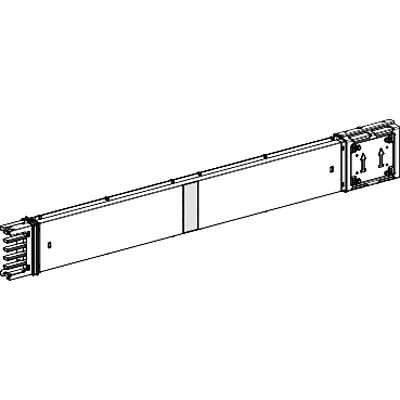

The Schneider Electric Canalis KSA is a horizontal busbar trunking system designed for complementary use, featuring a fire barrier for enhanced safety. Compatible with Canalis KSA busbar trunking at 400 A, it is made with aluminium conductors and operates with a 3L + N + PE polarity. The system is designed for fixed mounting via screws and has a length of 700 mm. With an IP55 protection rating conforming to IEC 60529, it offers strong resistance to dust and water. The rated operational current is 400 A at 35°C.RoHS compliantIP55 protection conforming to IEC 60529Mercury freeIK08 protection conforming to IEC 62262
