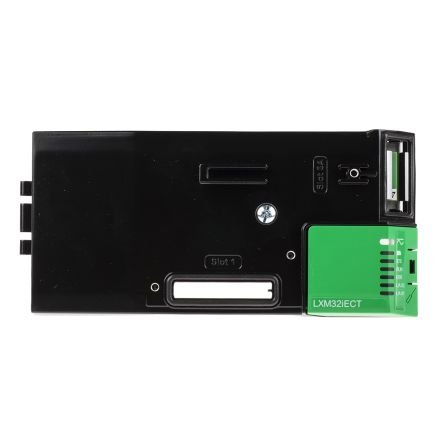

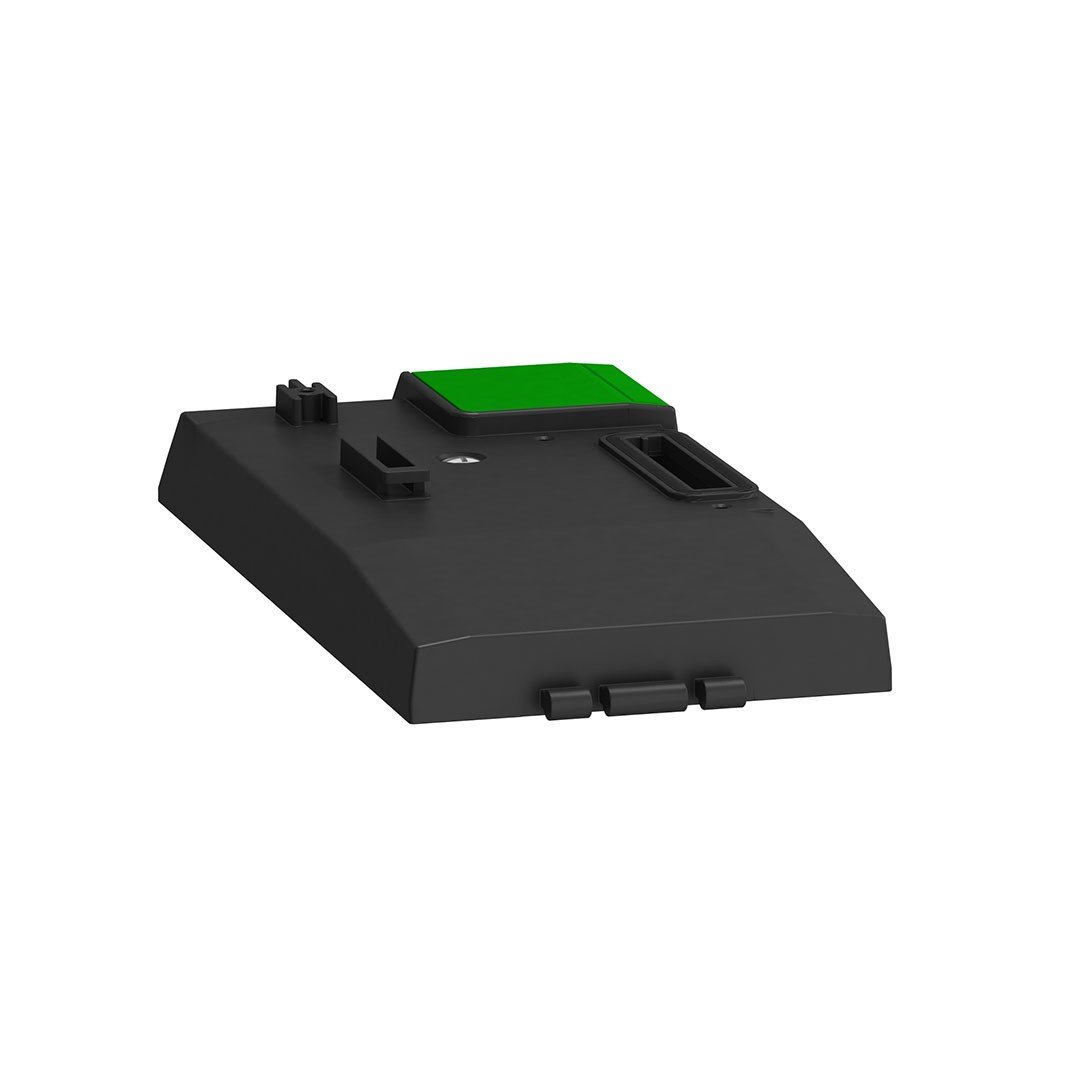

Schneider LXM32IECT LXM32i-Lexium 32i ethercat speed control unit

Product Series Lexium 32i
Product or component type control unit
Product Group LXM32i
driver
Number of digital inputs 2 security discrete entries (s)
4 Logic Disinfestal Input (s)
Digital Input Type Safety (Sto_A Group, Sto_B Group Terminals)
Logic (DI Terminals)
Sampling time DI: 0.25 ms hidden
Capture for Digital Entry Volume 24 V DC
Logic for 24 V DC
Security for 24 V DC
Digital Introduction Logic Positive (Sto_A Group, Sto_B Group) 0 In case: <5 V 1 in case:> 15 V suitable for the UIEC 61131-2 Type 1
Positif (DI) 0 case:> 19 V 1 in the case: <9 V. Positive or negative (DI) 0 in the case: <5 V 1 in case:> 15 V.
Response time <= 5 ms Sto_A Group, Sto_B Group Digital output number 2 Digital output type Logic Foots (DO) 24 V DC Digital output voltage <= 30 V DC Digital output logic is positive or negative (do). Contact jump time <= Sto_A Group for 1 MS, Sto_B Group 0.25 µs ... for 1.5 ms braking current 50 mA Response Time at the exit 250 µs (do) hidden outputs Control Signal Type Servo Motor Enkoder feedback Protection Type Against Reverse Polarity: Entry Signal Against short circuits: Output signal Security function Secure Torque Cutting Safety Function, Integrated Safety level suitable for SIL 3 SUITABLE FOR PL = E 13849-1 Communication interface ethercat, integrated Modbus for the type RJ45 of the connector Ethercat for M12 Access Method Slave Physical interface 2 -wire RS485 MULTI SETTING MODBUS Transmission Speed ​​9600, 19200, 38400 BPS Database for 0… 40 m for Modbus for 40 m The number of addresses 1… 127 canopen, canmotion Modbus for 1… 247 Status LED 1 LED (red) servo drive voltage 1 LED error 1 LED RUN Electromagnetic Compliance Teached EMC Conforming to EN 55011 Class A Group 1 SERVICE EMC CONFERMING TO EN 55011 CLASS A GROUP 2 SERVICE EMC CONFERMING TO EN/IEC 61800-3 ENVIRONMENT 2 Category C3 EMC CONFERMING TO IEC/EN 61800-3 Category C2 EMC immunity conforming to IEC/EN 61800-3 environment 1 and 2 EMC immunity Level 3 Conforming to IEC 61000-4-2 EMC immunity Level 3 Conforming to IEC 61000-4-3 EMC immunity Level 3 Conforming to IEC 61000-4-5 EMC immunity Level 4 Conforming to IEC 61000-4-4 SPREAD EMC Conforming to EN 55011 Class A Group 2 EMC Conforming to IEC/EN 61800-3 Category C3 Type of Cool Natural Convection Working height without <= 1000 m > 1000 … 3000 m conditions
Working position vertical +/- 10 degrees
Product weight 0.637 kg
