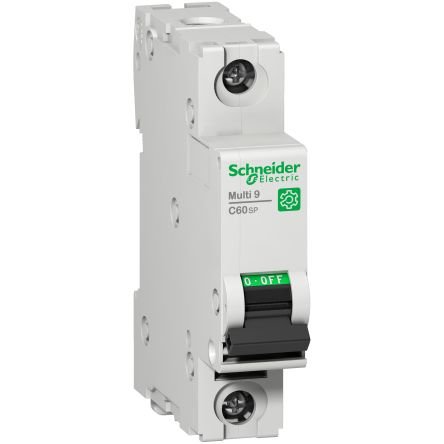

Schneider M9F22113 – Multi 9 C60SP MCB, 1P, 13A Curve C, 415V AC, 60V DC, 20 kA Breaking Capacity

Schneider Electric C60SP Series MCB, 1 Pole, 13A Current Rating – M9F22113This miniature circuit-breaker (MCB) is designed for distribution systems, specifically as a 1P (single pole) device rated for 13A. With dimensions of 18mm in width, 81mm in length, and 72mm in depth, this compact design fits efficiently onto a DIN rail. The device ensures protection by featuring a thermal-magnetic tripping mechanism and a rated operational voltage of 415V AC, making it suitable for a wide range of applications.Features & Benefits
• Provides a breaking capacity of 20kA for enhanced safety
• Utilises thermal-magnetic technology for operation
• Compact DIN rail mount design for ease of installation
• Tunnel terminal connections accommodate flexible and rigid wires
• Operates effectively in temperatures ranging from -30°C to 70°C
• Compliant with Green Premium for environmentally conscious choicesApplications
• Designed for electrical distribution systems
• Suitable for use in automation and control panels
• Ideal for commercial and industrial installations
• Utilised in applications requiring circuit protectionCan it handle both AC and DC systems? Yes, it is rated for both AC and DC applications.Will it provide isolation for the circuit? Yes, it is suitable for isolation as per standards.Is it possible to padlock the switch in an off position? Yes, the device has a provision for padlocking.
