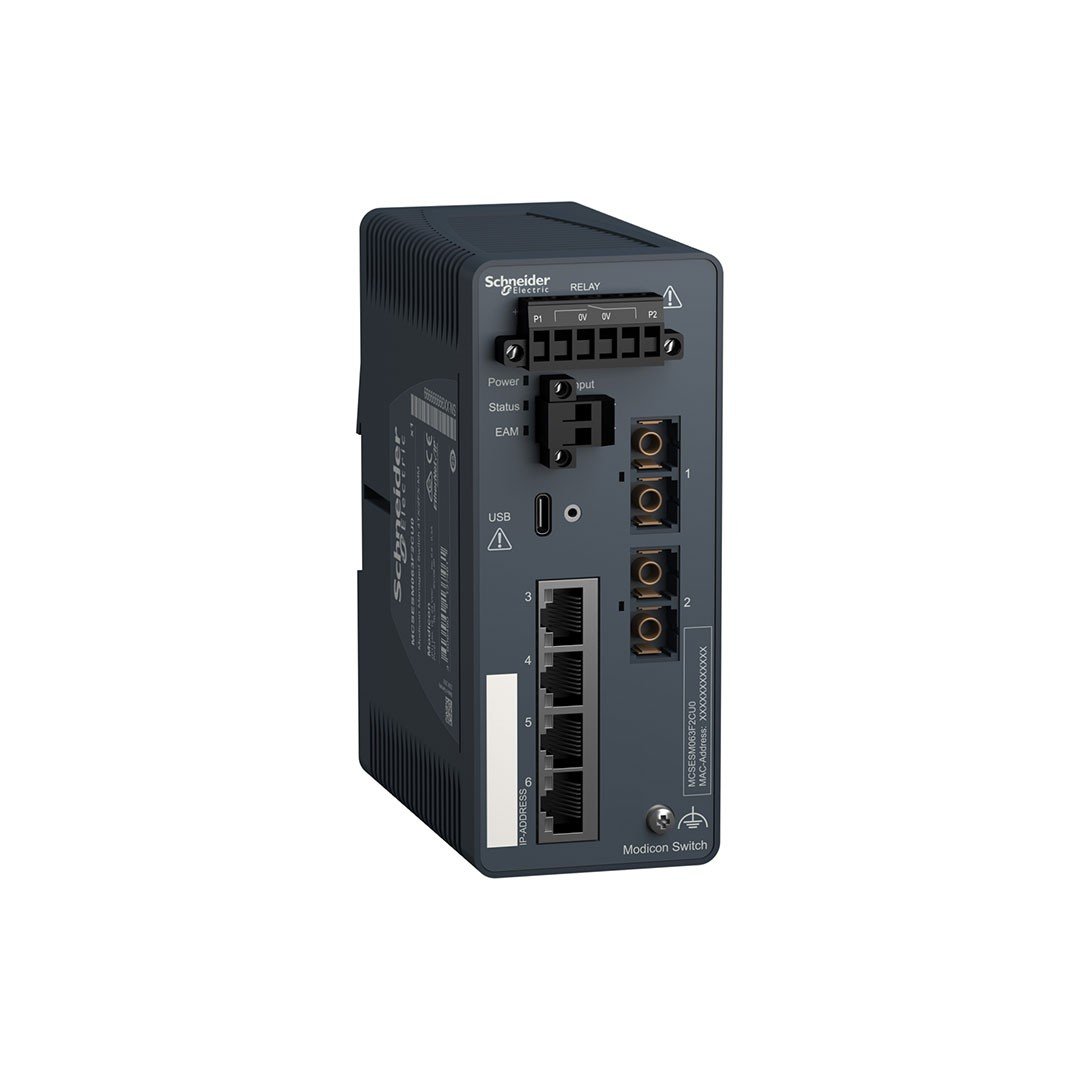

Schneider MCSESM063F2CU0 4TX/2FX-MM Modicon Managed switch

Product Series Modicon
Product or component type Ethernet TCP/IP managed key
Concept Transparent Ready
Communication Port Protocol Ethernet TCP/IP
SSH
Http
Https
SNMP
RS232
SFTP
SCP
Lldp
Telnet
SNTP
Port Ethernet 100Base -FX – 2 Port (s) Fiber Optic
10/100Base -TX – 4 Port (s) Copper Cable
maximum sequential keys number unlimited
Cyber ​​Safety Port Starting
IP Based Point Safety
Mac Based Point Safety
Port -based access control
Role -based access control
Radius appointment
Https
DOS PREVENTION
VLAN -based ACL
Audit trail
SNMP Diaries
Banner before the entrance
Integrated connection type Duplex SC Fiber Optic
RJ45 copper cable with screen
Transmission Support Fiber Optic for Medium Model Optical Fiber
Copper cable for Cat 5E with twisted screen cable
Maximum cable distance between devices 100 m copper cable
Optical fiber length 4 km 62,5/125 µm
5 km 50/125 µm
Reduction 0… 11 DB (62,2/125 µm)
0… 8 dB (50/125 µm)
Ethernet service configuration through the web server
VLAN
Multiple Broadcast Filtering
Data Flow Control
IgMP Monitoring
SNMP-TRAPS and SYSLOG
Communication Service TFTP
Service Quality (QOS)
Port Monitoring
Port reflection
Address Flood Detection
Diagnosis Time Time Signal Control
Self -test
Mac notification
Maximum ring -shaped number of keys 50
Backup hyper ring
RSTP
Connection
Connection backup
Spare network connection
MRP
[US] Nominal Feeding Voltage 12 … 24 V
Feeding voltage limits 9.6… 32 V DC SELV
Power Consumption 7 W
Electric connection removable connector 6 road power feeding
Assembly Support 35 mm Symmetric DIN RAY
Marking CE
Culus
Rcm
Usable Function Safety Status
Alarms (traps)
SYSTEM INFORMATION
Report
Local Signaling P1 P2 Power Nuts: 1 Dual Color LED (Green/Yellow)
Device Status: 1 Dual Color LED (Green/Red)
Memory Card Status: 1 Dual Color LED (Green/Yellow)
Channel Diagnosis: 1 Dual Color LED (Green/Yellow)
Alarm Output 1 Volt -free contact 1 a
Alarm Function Power Nutrition Error
Data Connection Status
Switch error
Temperature threshold
Backup ring error
False configuration
External memory has been removed
Ethernet cable system TF keys
Width 57 mm
Height 142.8 mm
Depth 117.6 mm
Product weight 0.42 kg
