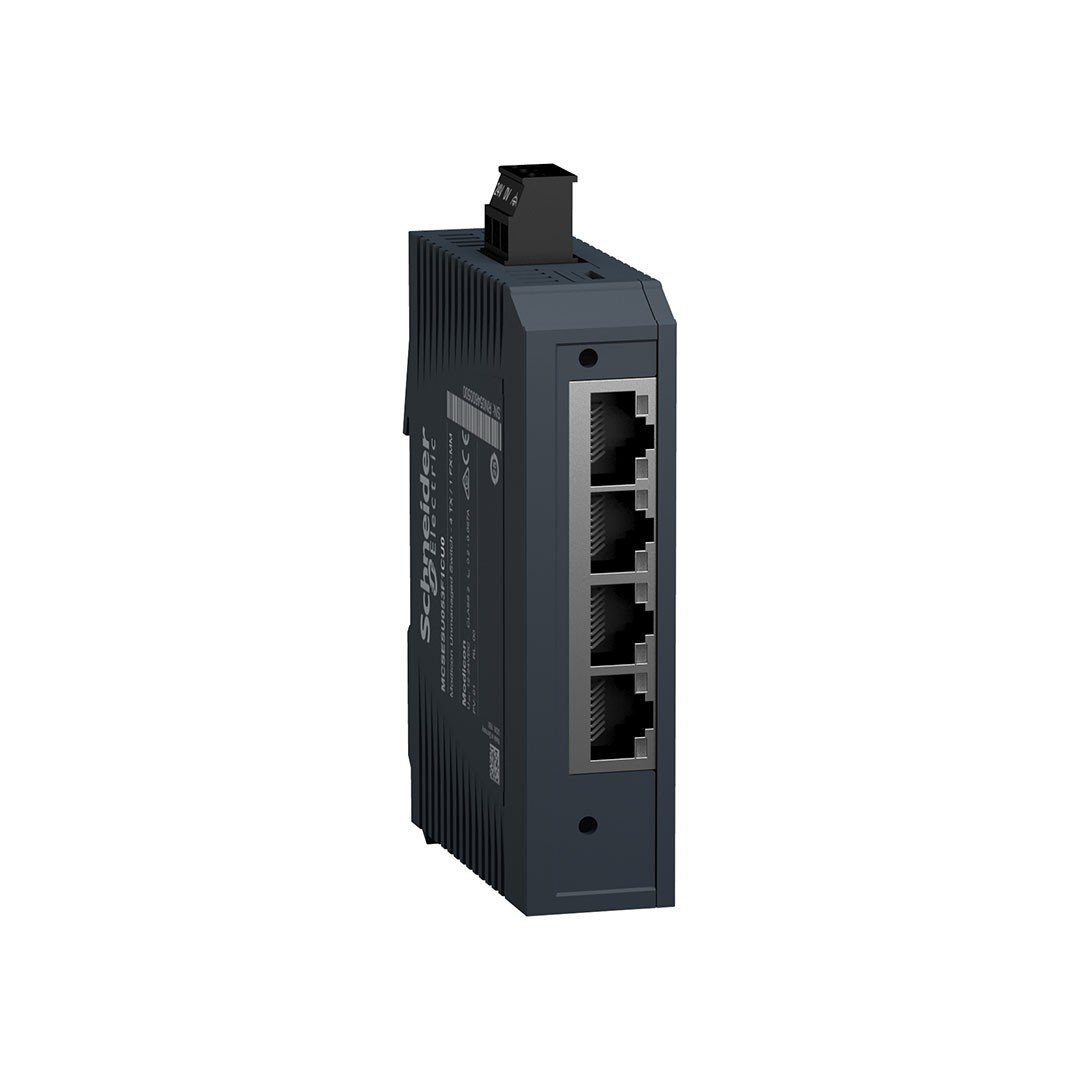

Schneider MCSESU053F1CU0 Modicon Networking cannot be managed (Unmanaged) 4 Port TX 1 Port FX-MM Industrial Ethernet Switch

Product Series Modicon
Product or component type Ethernet TCP/IP managed key
Concept Transparent Ready
Communication Port Protocol Ethernet TCP/IP
Port Ethernet 10/100Base -TX – 4 Port (s) Copper Cable
100base -fx – 1 port (s) fiber optic
maximum sequential keys number unlimited
Integrated connection type screen RJ45 copper cable
DUPLEX SC FIBER OPTIC
Transmission Support Middle twisted display dual cable Cat 5E copper cable
Fiber optic for multi -mod optical fiber
Maximum cable distance between devices 100 m copper cable
Optical fiber length 4 km 62,5/125 µm
5 km 50/125 µm
Reduction 0… 11 DB (62,2/125 µm)
0… 8 dB (50/125 µm)
[US] Nominal Feeding Voltage 12 … 24 V
Feeding voltage limits 9.6… 32 V DC SELV
Power Consumption 2.4 W
ELECTRIC CONNECTIVE CONNEctor 3 Road Power Nutrition
Assembly Support 35 mm Symmetric DIN RAY
Marking CE
Ul
Rcm
Local Signaling Power Feeding: 1 LED (Green)
Data Speed ​​(ETH LINK): 1 LED per channel (yellow)
Connection Status: 1 Dual Color LED (Green/Yellow)
Ethernet cable system TF keys
Width 26 mm
Height 102 mm
Depth 79 mm
Product weight 0.13 kg
