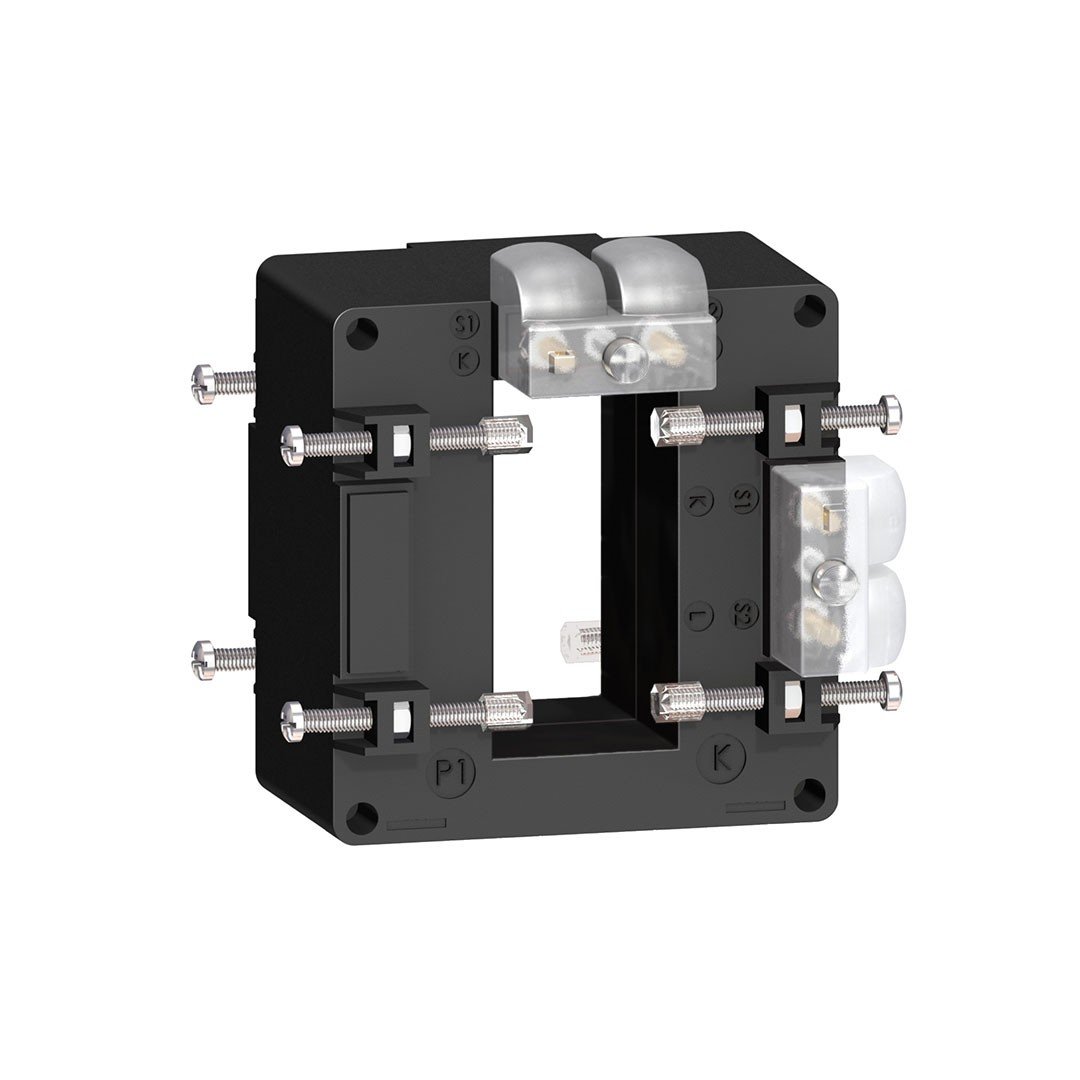

Schneider Metsect5DA040 current transformer

Serial PowerLogic
Product Name CT
Product or component type current transformer
Secondary current 5 A
Truth Class Class Class 0.5 -4 VA
Class 1 8 VA
Nominal Current (IR) 400 A
Tropic for current transformer type Busbar
Current transformer ratio 400/5
[Ith] Classic Open Air Thermal Current 24 Ka
Dynamic Strength Current 2.5 Ith
Maximum Feeding Current 5
[UE] Nominal Working Voltage <720 V AC 50/60 Hz [Ui] Nominal Insulation Voltage 3 KV Assembly type insulated locking screw Assembly support Busbar Width External: 90 mm Internal: 65 mm Height external: 94 mm Internal: 32 mm Depth Frame: 40 mm Total: 87 mm Product weight 0,531 kg [UIMP] Nominal impact resistance voltage 3 kV Electrical Insulation Class Class B Rod openness 65 x 32 With sealing
