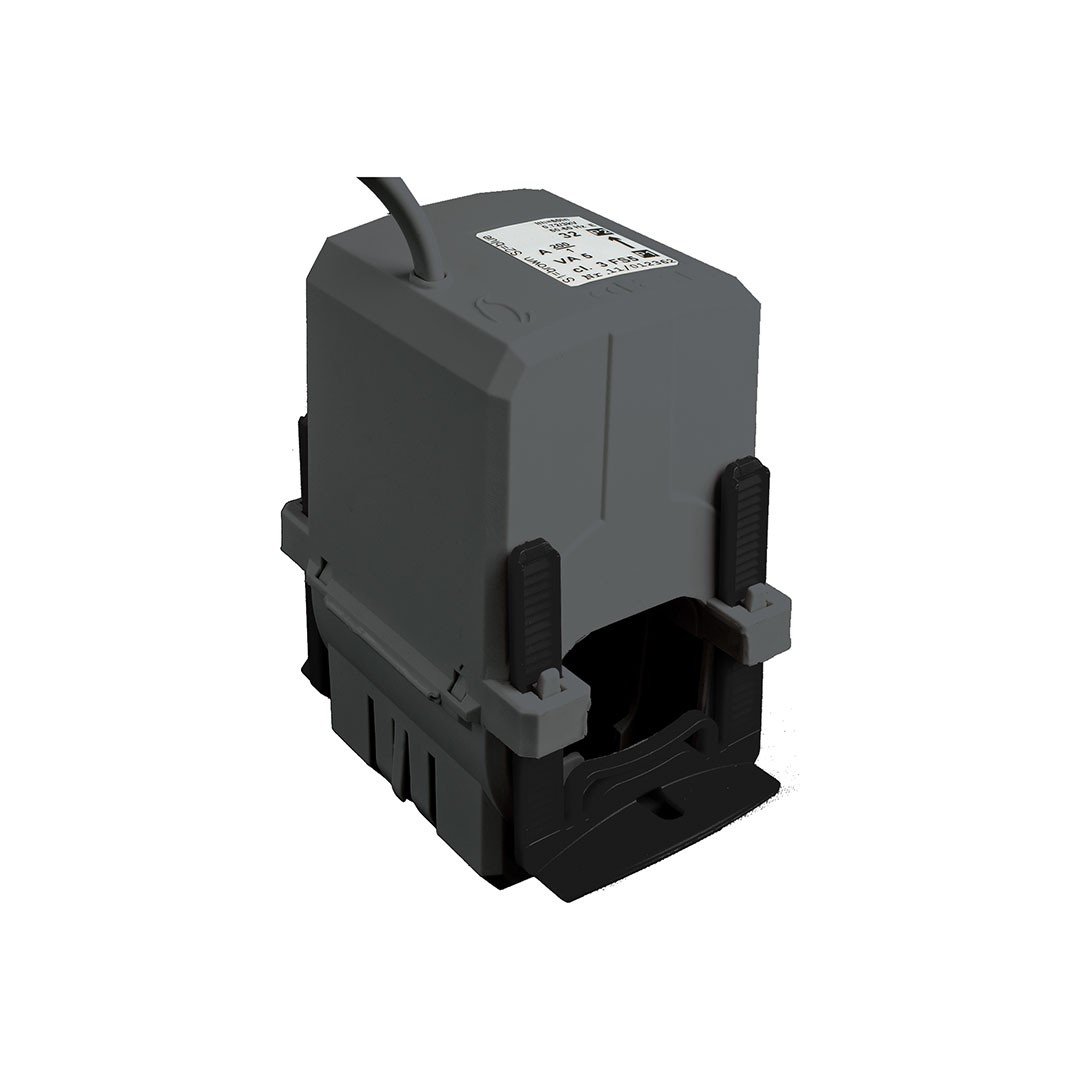

Schneider Metsect5hg060 Hg Type Cable 325 600A Disposable current transformer

Serial PowerLogic
Product Name CT
Product or component type current transformer
Secondary current 5 A
Righteous Class Class Class 1 5 VA
Nominal Current (IR) 600 A
Standard for current transformer type cable
Divided kernel
current transformer ratio 600/5
[Ith] Classic Outdoor Thermal Current 720 A
Maximum Feeding Current 5
Permitable current for 36000 A 1 S
[UE] Nominal Working Voltage <720 V 50 Hz [Ui] Nominal Insulation Voltage 3 KV Assembly type can be installed Width External: 59.2 mm Height External: 96.4 mm Depth 89.2 mm Diameter internal: 32.5 mm Electrical Insulation Class E Class Cable outer diameter 32.5 mm Connections - Terminals cable 2 cable (s) 0.5… 1.5 mm² 0.5 m
