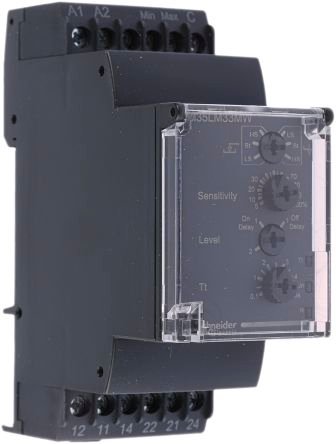

Schneider RM35LM33MW – Level Monitoring Relay, 1 Phase, DPDT, DIN Rail

Level control relays RM35 LThe level control relays RM35 LM33MW and RM35 LV14MW control one or two levels, filling or draining
function:RM35
LM33MW: control by resistive level sensor.RM35
LV14MW: control by “On/Off” sensor.Fitted with a clear hinged front flap to prevent any accidental alteration of settings.LED display of output status.Fitting on DIN Rail.StandardsNF EN 60255-6 and IEC 60255-6ApprovalsUL, CSA, GL, C-Tick, GOSTApprovalsUL, CSA, GL, C-Tick, GOSTStandardsNF EN 60255-6 and IEC 60255-6Liquid Level Relays are used to monitor the levels of conductive liquids, and are available in Up/Down, Minimum, Maximum, and Fill/Empty variations. Liquid Level Relays are straightforward to install and safe to use.Application ExamplesLiquid Level Relays (Conductive Level Sensors) are used in a wide variety of applications including waste water management and the monitoring and management of corrosive liquid media, and designed specifically to provide for
the:Monitoring and control of liquid levelsProtection of pumps against dry runningAbility to detect liquid leaks in a systemControl of media mixing ratiosControl of liquid levels
