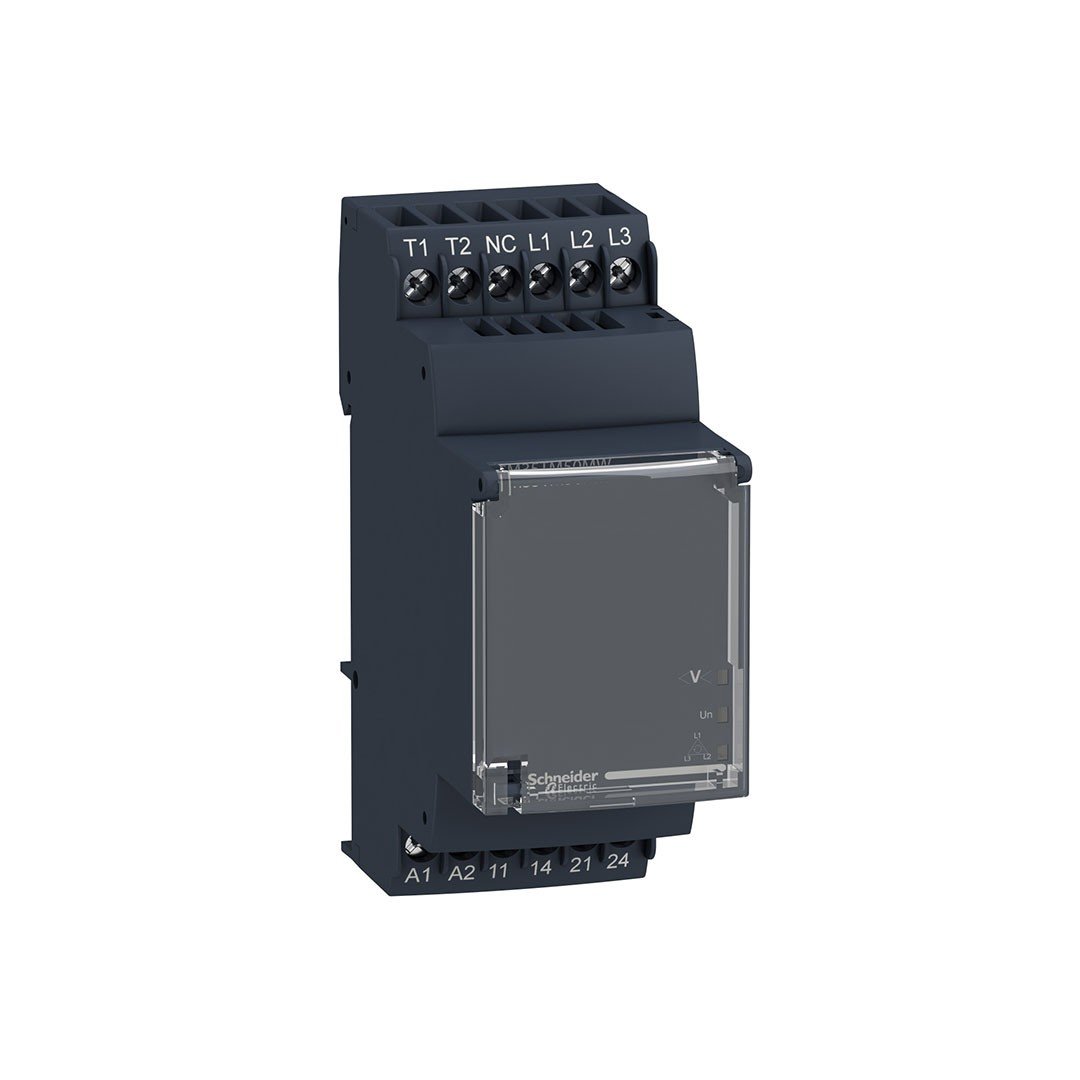

Schneider RM35TM50MW engine voltage and temperature control relay

Product Series Harmony Control Relays
Relay type motor temperature control relay
Product -specific application for 3 -phase feeding
relay name rm35tm
Parameters followed by the relay phase order
Motor temperature with PTC Probe
Phase error detection
Measurement range 208 … 480 V AC
15 … 3100 ohm
Without the delay time
output contacts 2 na
Nominal output current 5 A
Contact type and arrangement 2 na
Control circuit voltage (UC) 24 … 240 V
[UN] REDn Nominal Voltage 24 … 240 V AC/DC 50/60 Hz Non Self-Powered
Feeding voltage limits 20.4… 264 V AC
20.4… 264 V DC
reset time 10000 ms output
maximum switching voltage 250 V AC
250 V DC
Switching capacity in VA 1250 VA
Minimum Switching Current 10 MA -DE 5 V DC
maximum switching current 5 A AC
5 A DC
Power consumption in VA 0… 4 VA -24 … 240 V AC
Power consumption 0.5 W DC
Control circuit frequency 50 … 60 Hz +/- 10 %
Resistance between Terminals 602 MOHM
Measurement voltage limits 176… 528 V AC
Delay when the power is opened 500 ms
Voltage range 176 … 528 V
Response Time> 50 MS (Y1 input (Kontay1-T1) and pressed button)
Control circuit voltage <= 3,6 V 'Lighting Control Circuit (T1-T2 Terminals Open) Short circuit current 0.007 A temperature detection circuit (T1-T2 terminals short circuit) Maximum resistance between the terminals for 1500 ohm temperature sensor -20 ° C Temperature control circuit for 3100 ohm +/- 10 % reset threshold 1650 ohm +/- 10 % temperature control circuit Insulation resistance> 500 V DC Feeding and Relay output in 500 MOHM and relay output
> 500 V DC Measurement and Relay output in 500 MOHM 60664-1
> 1 MOHM -DC DC Feeding and Measurement Between Mohm 60255-5
> 500 V DC Feeding and Relay output in 500 MOHM 60664-1
> 500 V DC DC measurements and relay outputs in 500 MOHM 60255-5
> 1 MOHM -DC DC Feeding and Measurement Between 60664-1
[Ui] Nominal Insulation Voltage Compatibly to 400 V.IEC 60664-1
Feeding frequency 50/60 Hz +/- 10 %
Working position without any location
Connections – Terminals Screw Terminals, 1 x 0.5 … 1 x 4 mm² (AWG 20 … AWG 11) Solid Cable Essence
Screw terminals, 2 x 0.5 … 2 x 2,5 mm² (AWG 20 … AWG 14) Solid Cable Endless
Screw terminals, 1 x 0.2 … 1 x 2.5 mm² (AWG 24 … AWG 12) Flexible cable tip
Screw terminals, 2 x 0.2 … 2 x 1.5 mm² (AWG 24 … AWG 16) Flexible cable tip
Squeezing torque 0.6… 1 N.M.
Plastic with the conservation material spontaneously
Local Signaling Power Open: LED (Green)
Relay Phase (R2): LED (Yellow)
Temperature of the Relay (R1): LED (Yellow)
Assembly Support 35 mm Symmetric DIN RAYI
Electric strength 10000 Cycles
Mechanical durability 30000000 Cycles
Working Speed ​​<= 360 Working/hour full load Use category suitable for AC-12, 60947-5-1 Suitable for AC-13, 60947-5-1 Suitable for AC-14 60947-5-1 Suitable for AC-15IEC 60947-5-1 SUITABLE FOR DC-12 60947-5-1 Suitable for DC-13, 60947-5-1 Width 35 mm Product weight 0.13 kg Control type test without button
