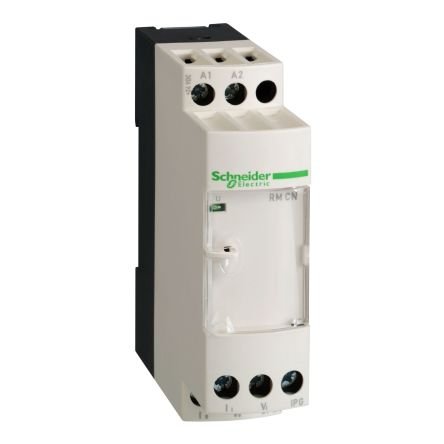

Schneider RMCN22BD – Harmony Analog Series Analogue Converter, Current, Voltage Input, 24V Supply, IECEx

Schneider Electric Harmony Analog Series Analogue Converter, 4 to 20mA Input Range, Clip-On Mount – RMCN22BDThis analogue converter is designed for efficient signal processing in various applications. It converts current and voltage inputs into a format suitable for controllers, enabling integration within automation systems. Its robust design and IECEx hazardous area certification ensure functionality in demanding environments.Features & Benefits
• Supports flexible input signal types for current and voltage
• Includes short-circuit protection for improved safety
• Features reverse polarity protection to prevent damage
• Operates across an industrial temperature range of -40°C to +85°C
• Low current consumption enhances energy efficiency
• MTTFd of 73.2 years promotes long-term functionalityApplications
• Used in process control for monitoring industrial systems
• Ideal for integration with PLCs in automated frameworks
• Suitable for hazardous locations where certification is necessary
• Employed in temperature and pressure monitoring equipment
• Utilised in facilities needing reliable voltage/current conversionWhat is the operating temperature range for this device?The device operates within a range of -40°C to +85°C, ensuring adaptability in challenging conditions.How is this device mounted in an industrial setting?It can be mounted using screws or clipped onto a 35mm symmetrical DIN rail, allowing for versatile installation based on space requirements.Can it be used in environments with electromagnetic interference?While measurement error may increase to +/-5% of full scale due to electromagnetic interference, it is designed to function effectively in such settings with proper installation.What types of protection features are included?The device has short-circuit protection, overvoltage protection, and reverse polarity protection, ensuring safe and reliable operation across various conditions.Does it require specific wiring considerations?Yes, maintain a distance between supply, input, and output cables from power cables to minimise induced interference and ensure optimal performance.
