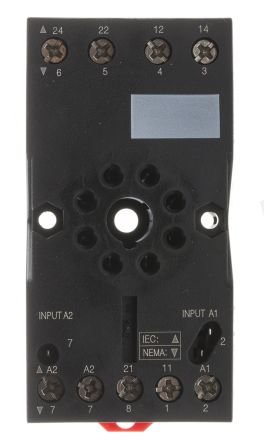

Schneider Ruzc2M Greek 2 -pole 8 pin relay socket
Schneider Ruzc2M Greek 2 -pole 8 pin relay socket by SCHNEIDER is a professional accessories designed for industrial automation applications.
Place your order
Product Series Harmony Electromechanical Relays
Harmony Timer Relays
Product Group Ruz
Product or component type socket
Product compatibility can be attached relay rumile 2 k/a [area] contact
Connected Relay Re48ile 2 K/A [Alan] contact
Consecribable relay re48ile 1 k/a + 1 k/a [area] contact
[Ith] Classic Open Air Thermal Current 10 A
[UE] Nominal Working Voltage <250 V
Contact type and arrangement 2 k/a
Connections - Terminals connector, 1 x 0.25 ... 1 x 2.5 mm² (AWG 22 ... AWG 14) Flexible cable tip
Connector, 2 x 0.25 ... 2 x 1 mm² (AWG 22 ... AWG 17) Flexible cable tip
Connector, 1 x 0.5 ... 1 x 2.5 mm² (AWG 20 ... AWG 14) Solid cable endless
Connector, 2 x 0.5 ... 2 x 1.5 mm² (AWG 20 ... AWG 16) Solid cable endless
Pim format cylinder
M3.5 screws for squeezing torque <1 N.M (s)
fixing mode screw (panel)
It can be attached (35 mm symmetric DIN RAY)
Contact Terminal Arrangement Mixed
Nominal Lightning Pulse Resistance Volume (UP) 4 KV
Excessive voltage category III
DEPRESS DEGREE 3
SALES per divisible amount 10
Width 38 mm
Product weight 0.054 kg
