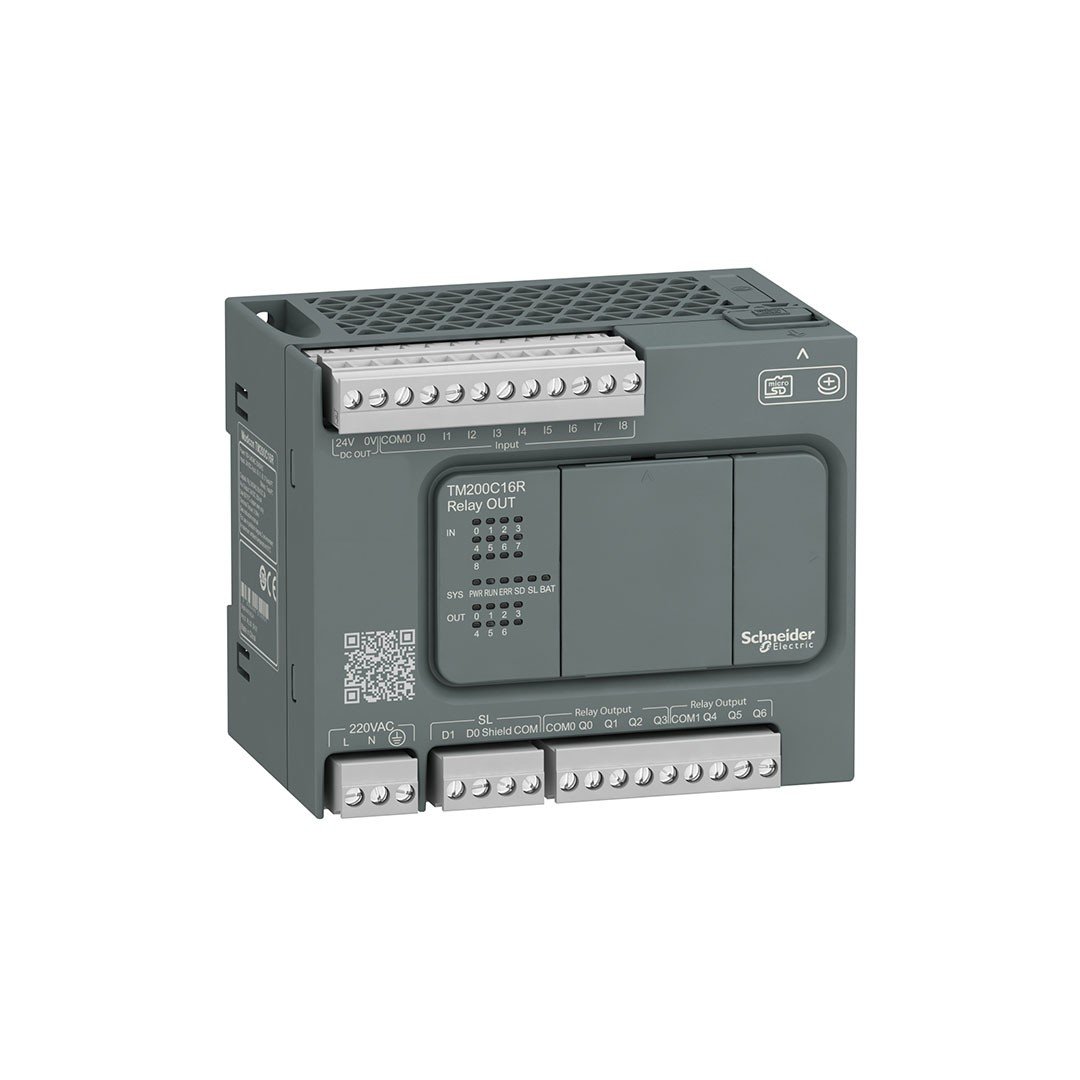

Schneider TM200C16R M200 Series 16 G ç Relay PLC

Range of Product Easy Modicon M200
Product Or Component Type Logic Controller
[US] Rate SUPPLY VOLTAGE 100 … 240 V AC
Discrete I O Number 16
Discrete input number I8: 1 Regular input
I2 … I5: 4 Fast input
I0, I1, I6, I7: 4 High Speed ​​Input
Discrete Output Number 7 Relay
Discrete input Voltage 24 V
Discrete input Voltage Type DC
Discrete input Current 7 MA for input
Discrete input Logic Sink or Source (Positive Negative) Type 1 Conforming to IEC 61131-2
Discrete Output Voltage 24 V DC
220 V AC
Discrete Output Current 2 A
Discrete Output Type Relay Normally Open
Power Consumption in VA 51 63 Va At 100 … 240 V AC (with Max I O)
Maximum Number Of I O Expansion Module 4 with 64 Discrete Output (S) for Transistor Output
4 with 71 Discrete Output (S) for Relay Output
Supply Voltage Limits 85 264 V
Network Frequency 50 60 Hz
INRUSH CURRENT 50 A
Voltage State 1 Guaranteed 15 V for Input
Voltage State 0 Guaranteed 5 V for input
INPUT IMPEDANCE 3.3 KOHM FOR DISCRETE INPUT
Response Time 10 ms Turn-Off, Q0 … Q6 Terminal (S) for Relay Output
10 ms turn-on, q0 … Q6 Terminal (S) for Relay Output
5 µs Turn-off, I0, I1, I6, I7 Terminal (S) for High Speed ​​input
5 µs Turn-on, I0, I1, I6, I7 Terminal (S) for High Speed ​​Input
100 µs Turn-off, I2 … I5 Terminal (S) for Fast Input
35 µs Turn-on, I2 … I5 Terminal (S) for Fast Input
100 µs turn-off, I8 Terminal (S) for regular input
35 µs Turn-on, I8 Terminal (S) for regular input
Configurable Filtering Time 0 ms for input
3 ms for input
12 ms for input
Output Voltage Limits 30 V DC
250 V AC
Maximum Current Per Output Common 4 A at Com 0
4 A at Com 1
Electrical Durabilite 100000 CYCLES AC-12, 240 V, 480 Va, Resistive
100000 CYCLES DC-12, 24 V, 48 W, Resistive
Switching Frequency 0.1 Hz with Maximum Load
Mechanical Durability 20000000 Cycles for Relay Output
Minimum Load 10 MA AT 5 V DC FOR RELAY Output
Memory Capacity 512 Byte Internal Flash With 10000 Instructions for Backup of Programs
Data Storege Equipment 32 GB Micro SD Card (Optional)
Battery Type BR2032 Li-CFX (Lithium-Carbon Monofluoride), Battery Life: 5 Year (S)
Backup Time 3 Years at 25 C (by Interruption of Power Supply)
Execution Time for 1 KırsTruction 0.3 ms for Event and Periodic Task
Execution Time Per Instruction 0.2 µs Boolean
ExCT Time for Event Task 60 µs Response Time
Clock Drift 90 S MONTH AT 25 C
Regulation Loop Adjustable PID REGULATOR UP TO 14 Simultaneous Loops
Control Signal Type Quadrature (X1, X2, X4) horse 100 khz for fast input (HSC Mode)
Pulse Direction at 100 Khz for Fast Input (HSC Mode)
Single Phase at 100 Khz for Fast Input (HSC Mode)
CW CCW AT 100 KHZ for Fast Input (HSC Mode)
Counting Input Number 4 Fast Input
Integrated Connection Type USB Port With Mini B USB 2.0 Connector
Non isolated serial link serial 1 with terminal block connector and rs485 interface
Non isolated Serial Link Serial 2 with Block Connector and RS232 RS485 Interface
Isolated Serial Link Serial 2 with Terminal Block Connector and RS485 Interface
Transmission Rate 1.2 … 115.2 Kbit S (115.2 Kbit s by Default) for Bus Length of 15 M For RS485
1.2 … 115.2 Kbit S (115.2 Kbit s by Default) for Bus Length of 3 M for RS232
12 MBit S for Usb
Communication Port Protocol Usb Port: USB – Somachine -network
Non isolated serial link: modbus master slave – rtu ascıı or somachine -network
Local Signalling 1 LED (Green) for Pwr
1 LED (Green) for Run
1 LED (Red) for Module Error (ERR)
1 LED (Green) for SD Card Access (SD)
1 led (red) for bat
1 LED (Green) for SL1
1 LED Per Channel (Green) for I O State
Electrical Connection Mini B USB 2.0 Connectorforfor A Programming Terminal
Removable Screw Terminal Blockfor Inputs
Removable Screw Terminal Blockforfor Outputs
Removable Screw Terminal Block, 4 Terminal (S) for Connecting The Serial Link1
Removable Screw Terminal Block, 3 Terminal (S) for Connecting The 100-240 V Ac Power Supply
Maximum Cable Distance Between Devices Ordhielded Cable: 50 M for input
Shielded Cable: 10 m For Fast Input
Shielded Cable: 10 M for High Speed ​​Input
Elemielded Cable: 150 m for Output
INSULATION NON-INSULATED BETWEEN INPUTS
Between Output and Internal Logic AT 1780 V AC
Between Output Groups AT 1780 V AC
Between Supply and Internal Logic AT 1780 V AC
Between input and Internal Logic Horse 500 V AC
Between Fast input and Internal Logic Horse 500 V AC
BETWEEN INPUT GROUPS AT 500 V AC
Sensor Power Supply 24 V DC AT 250 MA SUPPLED by the Controller
Marking Ce
Mounting Support Top Line Type Th35-15 Rail Conforming to IEC 60715
Top Line Type Th35-7.5 Plate Or Panel with Fixing Kit Conforming to IEC 60715
Height 90 mm
Depth 70 mm
Width 110 mm
Net Weight 0.359 kg
