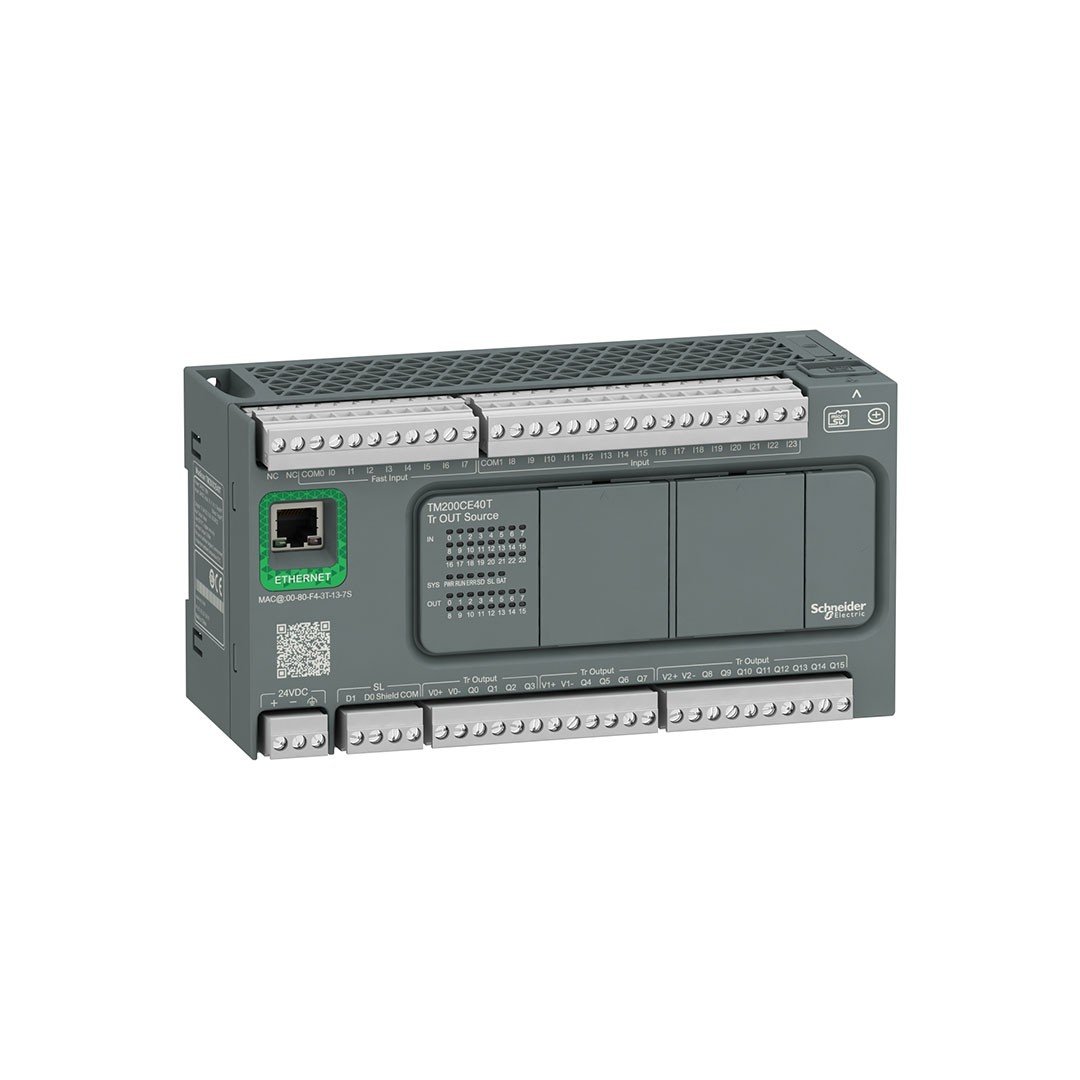

Schneider TM200CE40T 40 GÇ PNP Ethernet PLC

Range of Product Easy Modicon M200
Product Or Component Type Logic Controller
[US] Rate SUPPLY VOLTAGE 24 V DC
Discrete I O Number 40
Discrete input number I2 … I5: 4 fast input
I0, I1, I6, I7: 4 High Speed ​​Input
I8 … I23: 16 regular input
Discrete Output Number Q0 … Q1: 2 Fast Output (PLS PWM PTO Mode)
Q2 … Q15: 14 Transistor Output
Discrete input Voltage 24 V
Discrete input Voltage Type DC
Discrete input Current 7 MA for input
Discrete input Logic Sink or Source (Positive Negative) Type 1 Conforming to IEC 61131-2
Discrete Output Voltage 24 V DC
Discrete Output Current 0.5 A
Discrete Output Type Transistor
Discrete Output Logic Positive Logic (Source)
Power Consumption in W 18 W 24 V DC (with Max I O)
Maximum Number of I O Expansion Module 4 with 64 Discrete Output (S) for Relay Output
4 with 144 discrete output (s) for transistor output
Supply Voltage Limits 20.4 28.8 V
Inrush Current 35 A
Voltage State 1 Guaranteed 15 V for Input
Voltage State 0 Guaranteed 5 V for input
INPUT IMPEDANCE 3.3 KOHM FOR DISCRETE INPUT
Response Time 1 ms Turn-on, Q0 … Q15 Terminal (S) for Output
1 ms turn-off, q0 … Q15 Terminal (S) for output
5 µs Turn-off, I0, I1, I6, I7 Terminal (S) for High Speed ​​input
5 µs Turn-on, I0, I1, I6, I7 Terminal (S) for High Speed ​​Input
100 µs Turn-off, I2 … I5 Terminal (S) for Fast Input
35 µs Turn-on, I2 … I5 Terminal (S) for Fast Input
100 µs turn-off, I8 … I13 Terminal (S) for regular input
35 µs turn-on, I8 … I13 Terminal (S) for regular input
125 µs Turn-off, I14 … I23 Terminal (S) for Regular input
55 µs turn-on, I14 … I23 Terminal (S) for Regular input
Configurable Filtering Time 0 ms for input
3 ms for input
12 ms for input
Maximum Current Per Output Common 2 A
4 A
Output Frequency 100 KHz for Fast Output (PWM Pls Mode) at Q0 … Q1
Maximum Leakage Current 0.1 ma for Transistor Output
Maximum Voltage Drop 1 V
Maximum Tungsten Load 12 W for Output and Fast Output
Protection Type Overload and Short-Circuit Protection At 2 A
Reset Time 1 S Automatic Reset
Memory Capacity 512 Byte Internal Flash for Backup of Programs
Data Storege Equipment 32 GB Micro SD Card (Optional)
Battery Type BR2032 Li-CFX (Lithium-Carbon Monofluoride), Battery Life: 5 Year (S)
Backup Time 3 Years at 25 C (by Interruption of Power Supply)
Execution Time for 1 KırsTruction 0.3 ms for Event and Periodic Task
Execution Time Per Instruction 0.2 µs Boolean
ExCT Time for Event Task 60 µs Response Time
Clock Drift 90 S MONTH AT 25 C
Regulation Loop Adjustable PID REGULATOR UP TO 14 Simultaneous Loops
Positioning Functions PWM PLS 2 Channel (S) AT 100 KHz
Control Signal Type Quadrature (X1, X2, X4) horse 100 khz for fast input (HSC Mode)
Pulse Direction at 100 Khz for Fast Input (HSC Mode)
Single Phase at 100 Khz for Fast Input (HSC Mode)
CW CCW AT 100 KHZ for Fast Input (HSC Mode)
Counting Input Number 4 Fast Input
Integrated Connection Type USB Port With Mini B USB 2.0 Connector
Non isolated serial link serial 1 with terminal block connector and rs485 interface
Non isolated Serial Link Serial 2 with Block Connector and RS232 RS485 Interface
Ethernet Modbus TCP IP Ethernet with RJ45 Connector and 1 Ethernet Port 10 100Base-t interface
Isolated Serial Link Serial 2 with Terminal Block Connector and RS485 Interface
Transmission Rate 1.2 … 115.2 Kbit S (115.2 Kbit s by Default) for Bus Length of 15 M For RS485
1.2 … 115.2 Kbit S (115.2 Kbit s by Default) for Bus Length of 3 M for RS232
12 MBit S for Usb
10 100 Mbit S for Bus Length of 100 M for Ethernet Modbus TCP IP
Communication Port Protocol Usb Port: USB – Somachine -network
Non isolated serial link: modbus master slave – rtu ascıı or somachine -network
Ethernet MODBUS TCP IP: MODBUS TCP IP Client Server
Local Signalling 1 LED (Green) for Pwr
1 LED (Green) for Run
1 LED (Red) for Module Error (ERR)
1 LED (Green) for SD Card Access (SD)
1 led (red) for bat
1 LED (Green) for SL1
1 LED Per Channel (Green) for I O State
2 LEDS (Green) for Communication (LK ACT 10 100)
Electrical Connection Mini B USB 2.0 Connectorforfor A Programming Terminal
RJ45 Connectorforfor Connecting Ethernet Network
Removable Screw Terminal Blockfor Inputs
Removable Screw Terminal Blockforfor Outputs
Removable Screw Terminal Block, 3 Terminal (S) for Connecting The 24 V DC Power Supply
Removable Screw Terminal Block, 4 Terminal (S) for Connecting The Serial Link1
Maximum Cable Danceen Between Devices
Shielded Cable: 10 m For Fast Input
Shielded Cable: 10 M for High Speed ​​Input
Elemielded Cable: 150 m for Output
INSULATION NON-INSULATED BETWEEN INPUTS
Between input and Internal Logic Horse 500 V AC
Between Fast input and Internal Logic Horse 500 V AC
BETWEEN INPUT GROUPS AT 500 V AC
Between Output and Internal Logic Horse 500 V AC
Between Output Groups at 500 V AC
Between Supply and Internal Logic Horse 500 V DC
Marking Ce
Mounting Support Top Line Type Th35-15 Rail Conforming to IEC 60715
Top Line Type Th35-7.5 Plate Or Panel with Fixing Kit Conforming to IEC 60715
Height 90 mm
Depth 70 mm
Width 175 mm
Net Weight 0.523 kg
