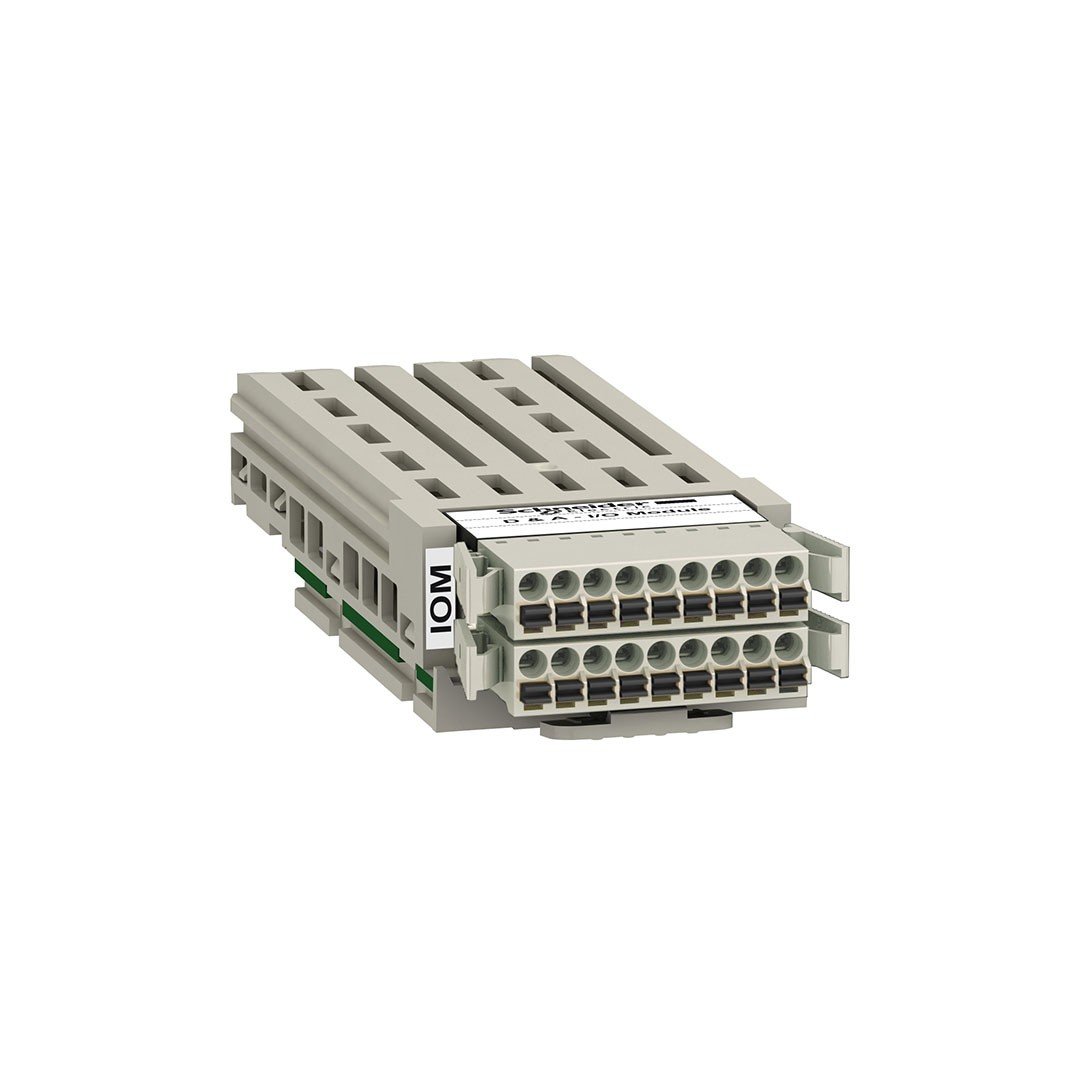

Schneider VW3A3203 Logic Extended Entry/Output Module

Product or component type additional G/Ç module
Serial Compliance Altivar Process ATV600
Altivar Machine ATV340
Altivar Process ATV900
Easy Altivar 610
Entry/Output Type 2 Analog input Configurable Voltage, Current or Probe
6 digital input
2 digital output
Number of analogs 2
Analog input type AI4, AI5 configurable current: 0 … 20 MA/4 … 20 MA, Sampling time: 0… 1 ms, resolution: 14 bit
AI4, AI5 configurable voltage: – 10 … 10 V DC 24 V MAKS, Impedance: 20 Kohm, Sampling time: 0… 1 ms, resolution: 14 bit
AI4, AI5 configurable PTC, PT 100, PT 1000, Sampling time: 0… 1 ms, resolution: 14 bit
Digital output number 2
Digital output type (DQ11, DQ12) Assignable Logic, Sampling time: 1 ms
Digital output logic (DQ11, DQ12) negative
(DQ11, DQ12) Positive
Number of digital inputs 6
Digital Introduction Type DI11 … DI16) Programmable, Impedance: 250 ohm, sampling time: 1 ms
Digital Introduction Logic Negative (DI11 … DI16)
Positive (DI11 … DI16)
Digital Entry Current 2.5 MA
Digital output voltage 24 V DC (voltage limits: <= 30 V) can be assigned logic maximum output current 100 mA, assigned logic Digital input voltage 24 V DC (voltage limits: <= 30 V) programmable for DC Electric connection removable spring terminal block, 1.5 mm² / AWG 16 Protection type reverse polarity protection: digital input Short Circuit Protection: Output Product weight 0.5 kg
