Electric XB4 Schneider Series Push Button, Panel Mount, 30mm Cutout, SPST – XB4FA42

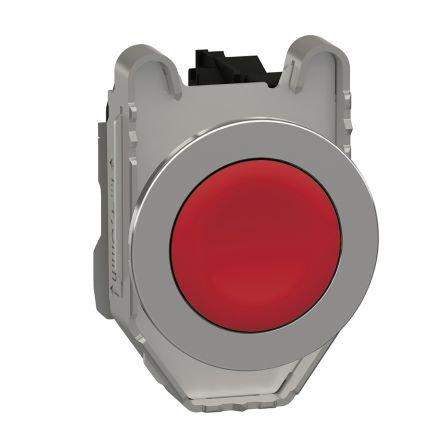

Schneider Electric XB4FA42This flush mounted pushbutton is a part of the Harmony XB4 metallic range and is a complete product. The mounting diameter is 30.5 mm. It has no marking. Customized marking option through web customization tool in Schneider Electric website is available. The flush mount design of this pushbutton addresses the market demands for ergonomic and aesthetics. The contact type is 1NC slow break and the connection terminal is screw clamp. The operator mechanism is spring return, and the push mechanism is flush push. The shape of the head is round and red. The bezel is chromium plated and the fixing collar is zamak. The weight of this pushbutton is 116 grams, height is 47 mm, and width is 36.6 mm. The simplicity of installation, flexibility, and robustness makes it suitable for the majority of industrial segments and applications. With IP66, 67, 69, and 69K, type 13 and 4X, IK06, protection against solid objects, dust, water, and high impact is achieved. It is certified with EN/IEC, UL, CSA, JIS, NEMA, and marine approvals. Accessories to be ordered separately are available to facilitate the installation. The packaging includes 1 unit of this pushbutton. It can be easily installed to a panel cut out with the help of a cross head screwdriver. Contacts and heads are designed to prevent vibration, helping to ensure secure mounting and wiring. It is eco-friendly and complies with directives such as RoHS, WEEE, etc. related to environmental protection.Operating temperature from -40°C –to 70°CHigh vibration resistance with shake-proof terminal screwsLarge set of accessories to customize your panelsVarious types of connection are
available: screw clamp, connector, Faston connector, spring terminal, or printed circuit boardA wide choice of contact blocks for general purpose or specific applications (low current, standard, or high power switching) BenefitsHigh performance even in the most demanding environmentsAttractive design, reinforced with the flush mounting kitFlexibility and adaptability through modular designSimplicity and speed of installationWide offer providing a solution for all your applicationsApplicationsGeneral purpose offer covering all segments and applications IndustryMachines and control panels in packaging, material handling, material working, pumping, etc.Ideal in extreme
environments: food and beverage, automotive, and outdoor use such as mining, water treatment, etc. Building and infrastructureEnergy distribution panels, public works, restaurants, commercial buildings, airports, etc.Flush mounted red Flush caps pushbutton 1NC “unmarked” screw clamp
