XB5AW73731B5 – Schneider Electric Harmony XB5 Series Illuminated Push Button, Push-Push, Panel Mount, 22mm Cutout, SPDT, 24V, IP66,

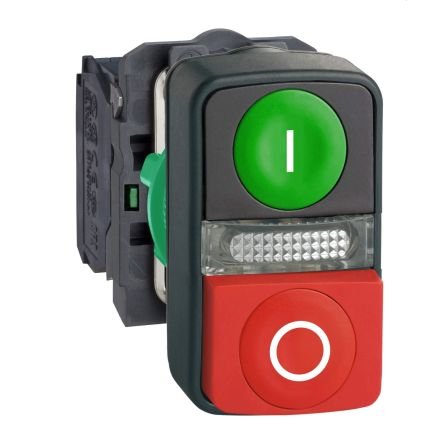

Schneider Electric Harmony XB5 Series Push Button, 22mm Panel Cut Out Diameter, IP66 /IP69/IP69K – XB5AW73731B5This illuminated push button improves user interaction in diverse industrial settings. Designed for panel mounting, it acts as a pivotal control element in automation and electrical systems. The dual-action mechanism provides both a flush green ‘I’ and a projecting red ‘O’ for clear operational indication, ensuring reliability in functional applications.Features & Benefits
• IP66, IP69, and IP69K ratings offer robust protection
• Operates effectively at 24V across a wide temperature range
• Durable plastic construction guarantees long-lasting performance
• Features dual contact configuration of SPDT for versatile applications
• Integral LED provides visibility under varying conditions
• Mechanical durability of up to 1,000,000 cycles enhances dependabilityApplications
• Used for signalling in automated machinery
• Ideal for control panels to facilitate easy operation
• Suitable for environments requiring high-pressure washing, supported by IP66 rating
• Compatible with universal LED blocks for added functionality
• Well-suited for industrial and mechanical installations needing visual indicatorsWhat is the operational voltage for compatibility?This push button requires a supply voltage of 24V AC/DC, operating at 50/60 Hz for optimal functionality.How can this be connected in a circuit?Connections can be made via screw clamp terminals for cables up to 1.5mm², offering flexibility for various installations.What is the expected lifespan under rated conditions?When used at rated voltage and 25°C, it can provide a service life of approximately 100000 years.Is this suitable for adverse environments?Yes, it operates effectively in an ambient temperature range from -40°C to +70°C, making it adaptable for various environments.ApprovalsLROS (Lloyds register of shipping), GL, DNV, UL listed, RINA, BV, CSA.StandardsEN/IEC 60947-5-1, UL 508, EN/IEC 60947-1, JIS C8201-5-1, CSA C22.2 No 14, EN/IEC 60947-5-4, JIS C8201-1.
