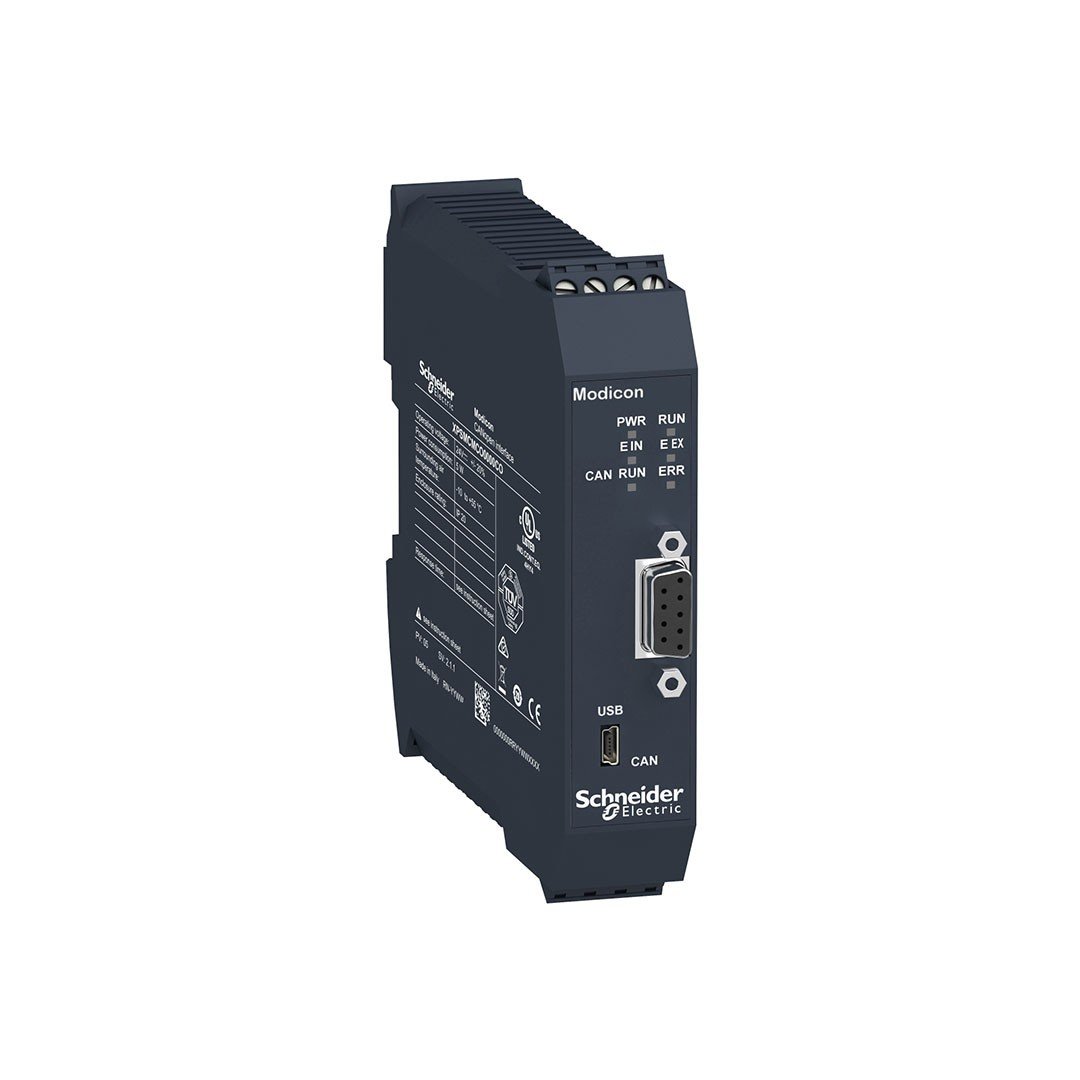

Schneider XPSMCMCO0000CO CANOPEN DIAGNOSTIC EXP. Screw Term Security Controller

Product Series Modicon McM
Product or Component Type Unfailed Communication Module
Product Group XPSMCM
[US] Nominal Nutrition Voltage 24 V – 20 … 20 % DC
Power distribution in W 3 W
Quality Labels CE
Serial Compliance Preventa XPSMCM
Type of the connector Men’s Sub-D 9
Number of Ports 1
Access method server
Transmission speed 10 kbit/s
20 kbit/s
50 kbit/s
100 kbit/s
125 kbit/s
250 kbit/s
500 kbit/s
800 kbit/s
1 Mbit/s
Automatically
Communication Port Protocol Canopen
current consumption 0.125 mA
Maximum cable distance between the devices 2500 m
1000 m
750 m
500 m
250 m
100 m
50 m
25 m
Local Signaling LED Green Pwr Power Open for Sign
LED Green Run Works for sign
Internal error for LED redile
EXADAL ERROR FOR LED RED RED EX SOCIETY
LED GREEN/RED WORKING FOR OP SOCIET
LED GREEN/RED ERR ERR SOCIETY COMMUNICATION ERROR
Connections – Terminals 2 Holder Screw Clamp Terminals, Removable Terminal Block
Cable cross -section 0.2… 1.5 mm² – AWG 24 … AWG 16 Flexible Kablokablo vast
0.2… 2.5 mm² – AWG 24 … AWG 14 Flexible KABLOKABLO VIPless
0.25… 1 mm² – AWG 23 … AWG 18 Flexible Kablokablo Tip, Fallsless
0.25… 2.5 mm² – AWG 23 … AWG 14 Flexible Kablokablo Tip, Slope
0.25… 2.5 mm² – AWG 23 … AWG 14 Flexible Kablokablo Tip, Slope
0.5… 1.5 mm² – AWG 20 … AWG 16 Flexible Kablokablo Tip, Double Slope
0.2… 1 mm² – AWG 24 … AWG 18 times Kablokablo endless
0.2… 2.5 mm² – AWG 24 … AWG 14 times Kablokablo endless
Mounting Support Omega 35 mm DIN RAYI
Width 22.5 mm
Height 99 mm
Depth 114.5 mm
Product weight 0.3 kg
