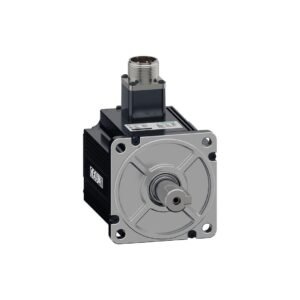

Schniier BCH18LM30332A6C EASY LEXİUM 18 3KW L130 23 BIT OPTO INC Servo Motor

Serial Compliance Easy Lexium 18
Product Group Bch18
Product or component type servo motor
Maximum Mechanical Speed ​​6000,0 RPM
[US] Nominal Feeding Voltage 200 … 240 V
Network of Phase Networks 3 Phase
Continuous stop current 18.6 A
Continuous stop torque 9.8 N.M, 220 V, trifase
Continuous Power 3000 W
Tepe Durma Torku 29.4 N.M, 220 V, Trifase
Nominal output power 3000 W, 220 V, trifase
Nominal torque 9.8 N.M, 220 V, trifase
Nominal Speed ​​3000 RPM, 220 V, Trifase
Maximum Permanent Current 56.0 A
shaft tip parallel key
Shaft diameter 28 mm
Shaft length 63 mm
Key width 8 mm
Back Feeding Type 23 Bits Optic Incremental Encoder
without braking
Assembly support Asia Standard Flange
engine flange size 130 mm
Electric Connection 2 Connector Male/Female
torque constant 0.53 n.m/a -de 40 ° C
Recommendation constant 35.0 V/Krpm 40 ° C per EMF
Rotor Authority 7.63 kg.cm²
maximum radial power fr 980 n
Maximum Axial Power FA 392 N
length 208.9 mm
The number of assembly holes is 4.0
Circular diameter of the assembly holes 9.0 mm
Width 205.9 mm
Height 130.0 mm
Depth 208.9 mm
Product weight 10,16 kg
ENKODER TYPE OPTIC ENCODER
