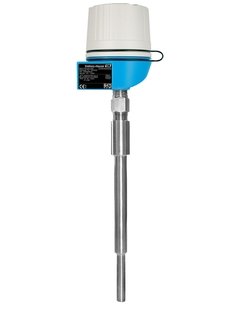

T13 Explosion proof Pt100 thermometer, US style | Endress Hauser

Specs at a glance

Accuracy: class A acc. to IEC 60751
class B acc. to IEC 60751
Response time: depending on configuration
63% rt = 20 s
Max. process pressure (static): at 20 °C: 100 bar (1.450 psi)
depends on configuration
Operating temperature range: PT100 WW:
-200 °C … 600 °C
(-328 °F … 1.112 °F)
PT100 TF:
-50 °C … 200 °C
(-58 °F … 392 °F)
Max. immersion length on request: up to 22.5″ (571 mm)
others on request

—————————————-

Field of application

Endress Hauser’s

The robust device with a barstock thermowell is a complete unit ready for use with various housing transmitter heads to meet the application and space requirements. The unit offers enhanced measurement accuracy and reliability. A variety of process connections, dimensions, and materials (like 316L SS and Hastelloy C276) offer flexible application possibilities.

• Chemicals
• Petrochemical
• Refineries
• Offshore Platforms
