Specs at a glance
Accuracy: class A acc. to IEC 60751
class B acc. to IEC 60751
Response time: depending on configuration
63% rt = 20 s
Max. process pressure (static): at 20 °C: 500 bar (7.252 psi)
depends on configuration
Operating temperature range: PT100 WW:
-200 °C … 600 °C
(-328 °F … 1.112 °F)
PT100 TF:
-50 °C … 200 °C
(-58 °F … 392 °F)
Max. immersion length on request: up to 22.5″ (571 mm)
others on request
—————————————-
Field of application
Endress Hauser’s

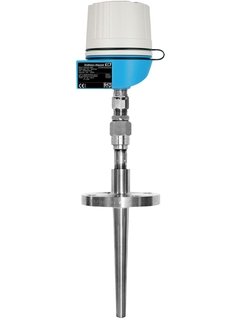

The robust thermometer is designed for use in demanding and safety relevant applications e.g. in Chemical, Oil & Gas and Energy industry. Harsh environments, corrosive substances and highest pressures can be handled by the use of robust thermowells and special materials. A optional head transmitter with all common communication protocols makes the device ready to use with enhanced measurement accuracy and reliability compared to directly wired sensors. Flexible configuration possible.
• Chemicals
• Petrochemical
• Refineries
• Offshore Platforms
