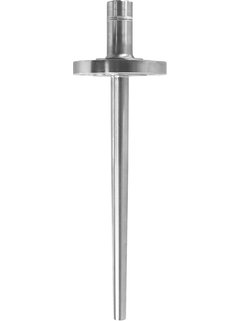

TA576 Barstock thermowell

Specs at a glance

Max. process pressure (static): 500 bar (7252 psi)
Maximum standard immersion length: 1000 mm (39,37″)
Max. immersion length on request: 5.000 mm (196,85″)

—————————————-

Field of application

Due to the challenging process conditions by heavy duty applications the load capacity of a thermowell must be calculated exactly. Dye penetration tests, ultrasound test, helium leakage test, pressure endurance test as well as various, non-destructive material tests prove the quality of materials and processing.
