Specs at a glance
Accuracy: class 1 acc. to IEC 60584
Response time: depending on configuration
Max. process pressure (static): at 20 °C: 400 bar (5.802 psi)
Operating temperature range: Type K:
max. 1.100 °C
(max. 2.012 °F)
Type J:
max. 750 °C
(max. 1.382 °F)
Max. immersion length on request: up to 30.000,00 mm (1.181,10”)
—————————————-
Field of application
Endress Hauser’s

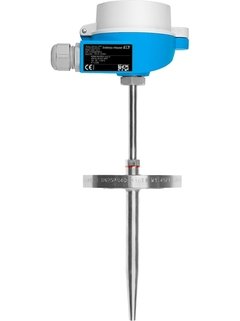

The high modular and robust thermometer finds its use in several applications in almost all industries. An optional head transmitter, with all common communication protocols, makes the device ready to use with enhanced measurement accuracy and reliability compared to directly wired sensors. A variety of process connections, dimensions and materials offer flexible application possibilities.
• Universal range of application
• Particularly suitable for steam and gas applications with high process pressures and temperatures
• Measuring range: –40 to 1100 °C (–40 to 2012 °F)
• Static pressure range up to 400 bar (5800 psi)
• Degree of protection: up to IP68
