Specs at a glance
Accuracy: class 1 acc. to IEC 60584
Response time: depending on configuration
t50 = 3 s
t90 = 7 s
Max. process pressure (static): at 20 °C: 500 bar (7.252 psi)
Operating temperature range: Type K:
max. 1.100 °C
(max. 2.012 °F)
Type J:
max. 800 °C
(max. 1.472 °F)
Max. immersion length on request: up to 5.000,00 mm (196,85”)
—————————————-
Field of application
Endress Hauser’s

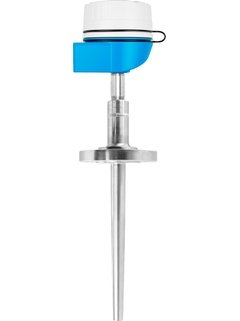

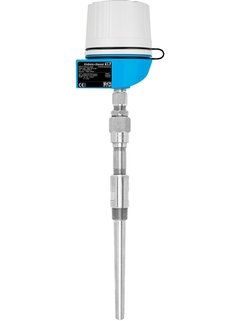

The robust thermometer is designed for use in demanding and safety relevant applications e.g. in the Chemical, Oil & Gas and Energy industry. Harsh environments, corrosive substances and highest pressures can be handled by the use of robust protection tubes and special materials. An optional head transmitter with all common communication protocols makes the device ready to use with enhanced measurement accuracy and reliability compared to directly wired sensors.
• Heavy duty applications
• Oil & Gas processing industry
• Measuring range: –40 to 1 100 °C (–40 to 2 012 °F)
• Static pressure range up to 100 bar (1450 psi)
• Protection class: IP68
