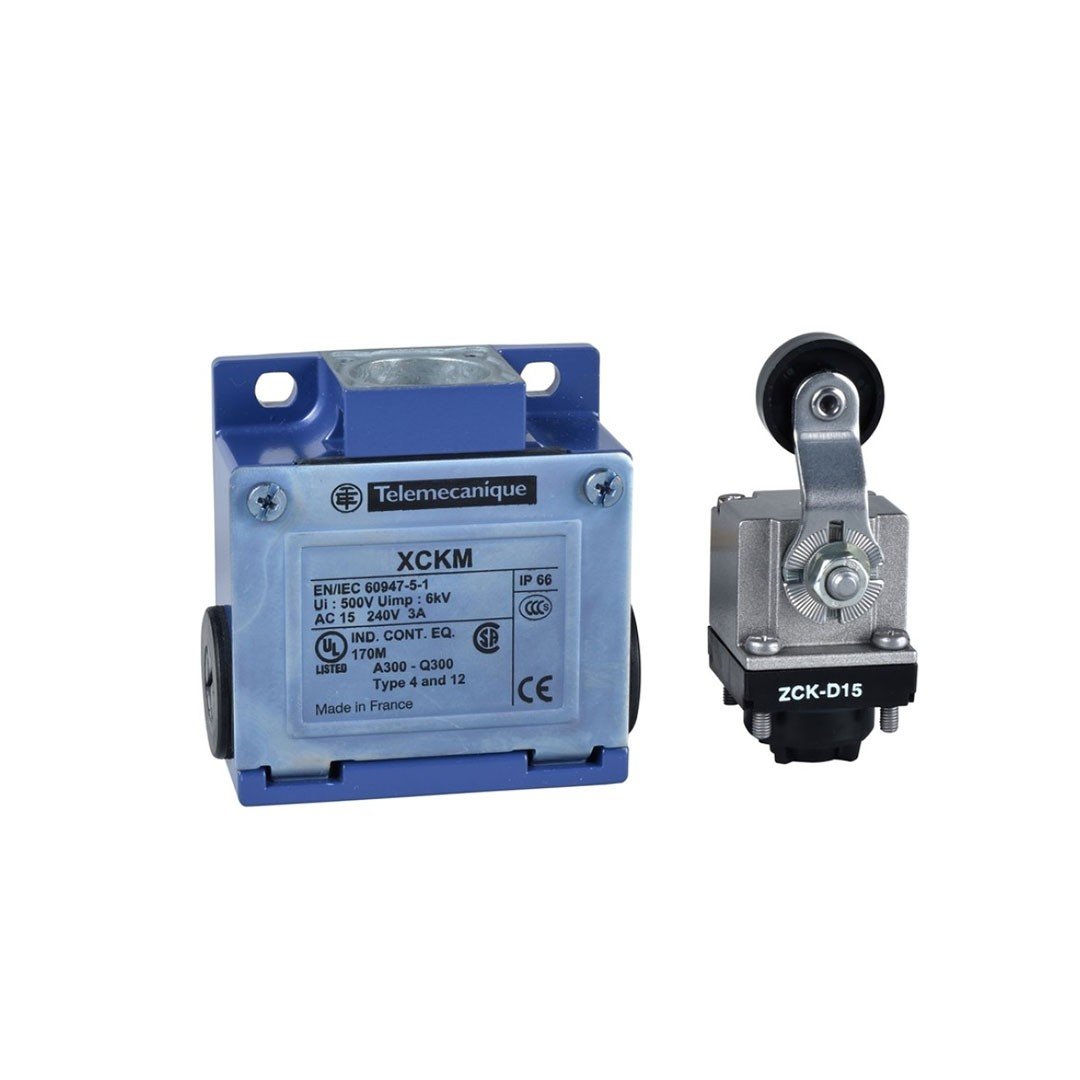

Telemecanique Sensors XCKM115 angular moving roller limit switch

Telemecanique Sensors XCKM115 angular moving roller limit switch

Product Series Telemecanique Limit Switches XC Standard
Serial Name Standard Format
Product or component type limit key
Product Group xckm
Body Type Fixed
Title Type Doner Title
Material metal
Body Material
Fixing mode with body
The movement of the working title turns
Type of the operator’s type of spring return roller lever Thermoplastic
Approach type lateral approach, 2 ways
Cable entrance PG 11 Cable Rakor 3 Entrance Tapped
Number of poles 2
Contact type and arrangement 1 nk + 1 na
contact process
Sudden moving

Switch Running through 30 ° Cam
Electric Connection Screw Clamp Terminals, Clamping Capacity: 1 x 0.34 … 2 x 1.5 mm²
Contact insulation form zb
Number of Steps 1
With positive openness
Positive openness minimum torque 0.25 N.M
minimum opening torque 0.1 N.M
Minimum running speed 0.01 m/min
maximum running speed 1.5 m/s
