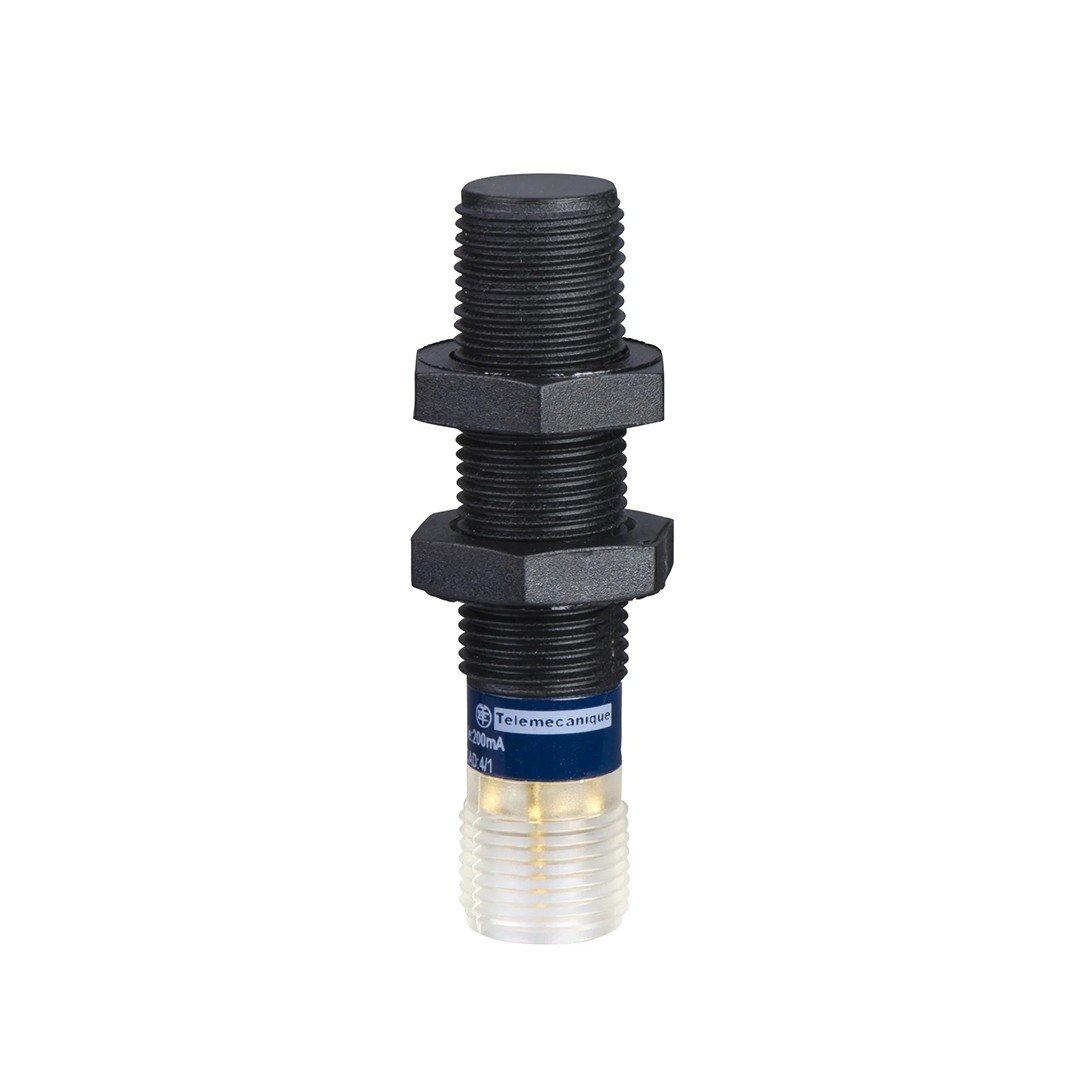

Telemecanique Sensors XS4P12NA340D U48mm-Sn4mm PPS XS4 M12 12-24VDC Inductive Sensor

MAIN
Product range telemecanique xs inductive affinity detectors
December Name Evrensel
Sensor type inductive proximity sensor
Sensor Name XS4
Sensor shape cylindrical M12
Size 48 mm
Storage type fixed
Detector assembly capacity is not established
Subject Plastic
Output signal type digital
Connection method 3 wire
[SN] Nominal December 4 mm
Logic Output 1 “F”
Output circuit type CC
Logic Output Type NPN
Electrical Connection M12 Men’s Connector, 4 Pin
[USA] Nutrition Voltage Reverse Polarity Protected 12… 24 V DC
Switching in MA <= 200 mA DC, overload and short circuit protected IP protection degree is suitable for IP67, IEC 60529 COMPLEMENT Subject Type M12x1 Perception face from the front Front Panel Material P.P.S. BOX MATERIAL P.P.S. Working Range 0… 3.2 mm Differential Road 1 %of SR… 15 LED Status Output Status: 1 LED (Yellow) Feeding Voltage Limits 10… 36V DC Frequency Change <= 5000hz Maximum voltage drop <2 V (closed) Power Consumption <= 10 MA Free Maximum usability delay 10MS Maximum response delay 0.1 ms Maximum recovery delay 0.1 ms Marking CE Subject Length 27 mm Height 18 mm Length 48 mm Product weight 0.02 kg
