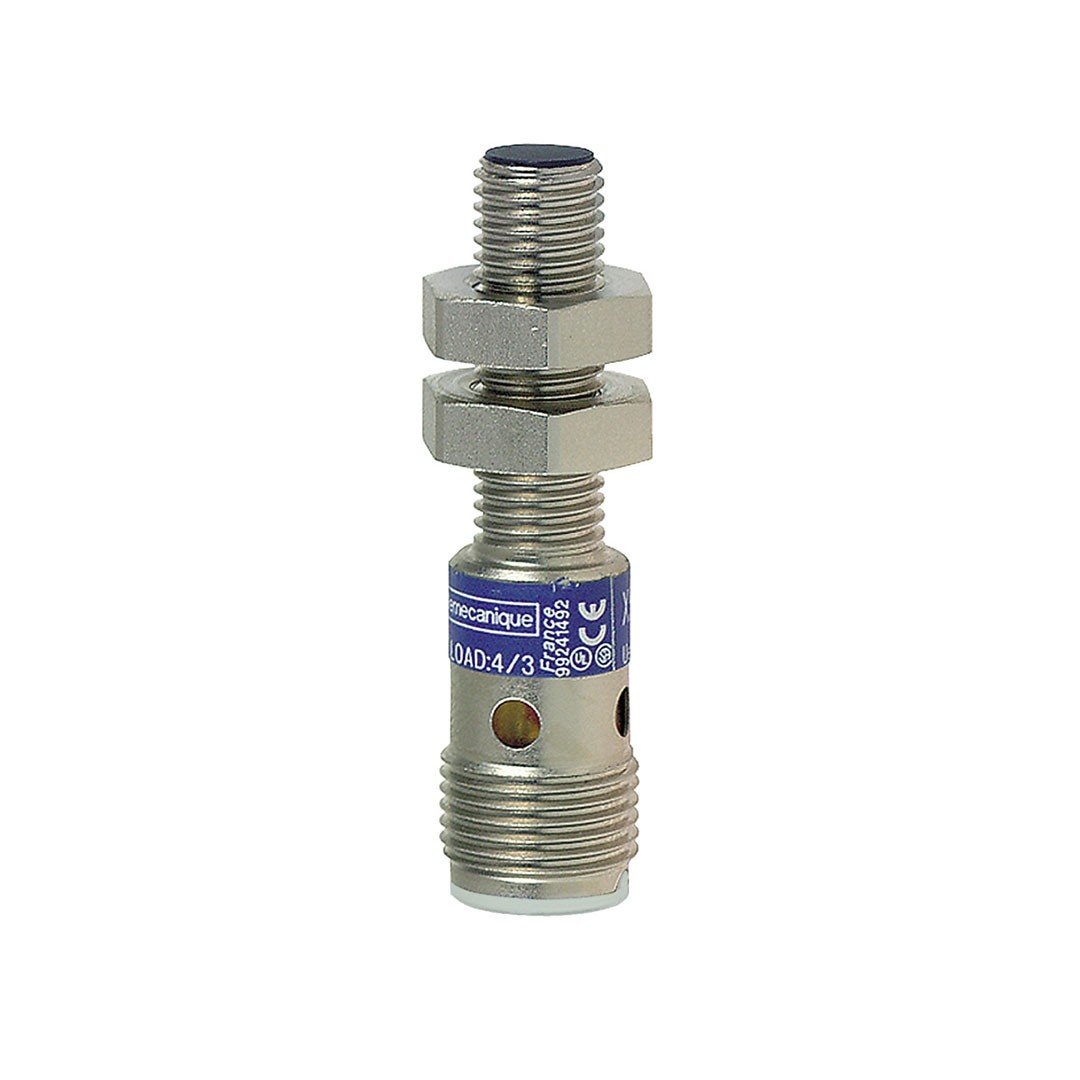

Telemecanique Sensors XS608B12 L62mm-Sn2.5mm M8-M12 Inductive Sensor

Serial name
:
General purpose
Sensor type
:
Inductive proximity sensor
Sensor Name
:
XS6
Sensor design
:
Cylinder M8
Dimension
:
62 mm
Body type
:
Still
Detector Burging Assembly Acceptance
:
Plaster -Mounted Plaster
Material
:
Stainless steel
Type of the output signal
:
Hidden
Wiring technique
:
3 stringed
[SN] Nominal Perception Distance
:
2.5 mm
Digital output function
:
1 NA
Output circuit type
:
DC
Digital output type
:
NPN
Electric connection
:
Men’s connector M12, 4 pim
[US] Nominal Nutrition Voltage
:
12 … 48 V DCile Reverse Polarity Protection
Switching capacity in MA
:
<= 200 mA dcile overload and short circuit protection IP protection degree : Suitable for IP67 IEC 60529 Complementary features Tooth type : M8 x 1 Perception surface : Front Front material : PPS Conservation material : Stainless Steel 303 Perception range : > 0 … 2.5 mm
Working area
:
0… 2 mm
Differential movement
:
1 %of SR … 15
Status LED
:
Output Status: 1 LED (Yellow)
Feeding voltage limits
:
10… 58 V DC
Switching frequency
:
<= 2500 Hz Maximum voltage drop : <2 V (closed) Current consumption : <= 10 mA loadless Maximum delay first : 10 ms Maximum delay response : 0.2 ms Maximum delay recovery : 0.2 ms Marking : CE Gear length : 40 mm Length : 62 mm Product weight : 0.015 kg
