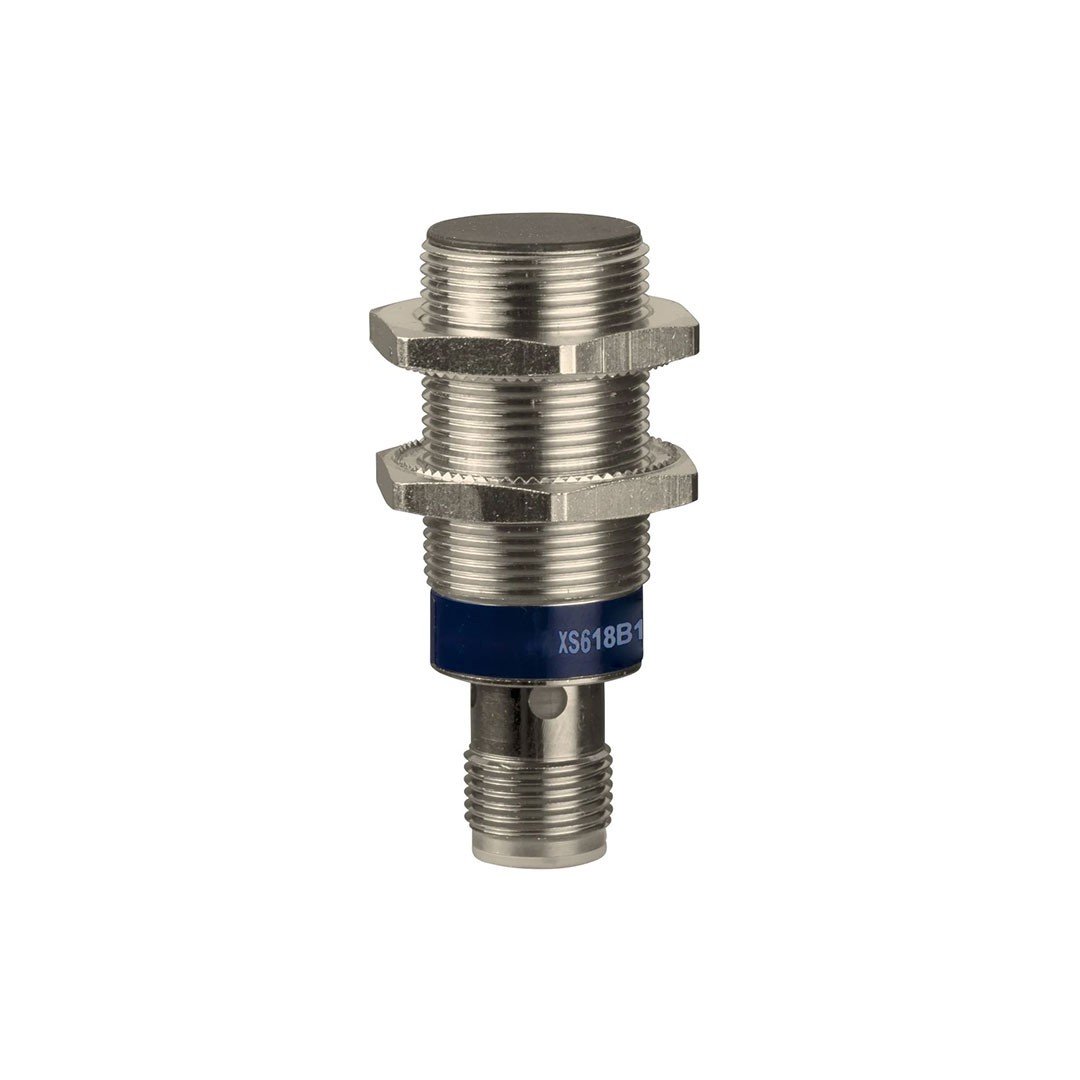

Telemecanique Sensors XS618B12 M18 L74mm-Sn8mm-M12 Inductive Sensor

Serial Name General Purpose
Sensor type inductive proximity sensor
device application
Sensor Name XS6
Sensor Design Cylinder M18
Size 74 mm
Body Type Fixed
Detector Burging Assembly Acceptance can be installed under plaster
Material metal
Type of the output signal hidden
Wiring Technique 3 Strong
[SN] Nominal Perception Distance 8 mm
Digital output function 1 Na
output circuit type DC
Digital output type npn
Electric Connection Men’s Connector M12 4 Pim
[US] Nominal Feeding Voltage 12 … 48 V DCile Reverse Polarity Protection
Switching capacity in MA <= 200 mA dcile overload and short circuit protection IP protection Degree IP67Musitality Standard IEC 60529 IP69 Performance Standard DIN 40050
