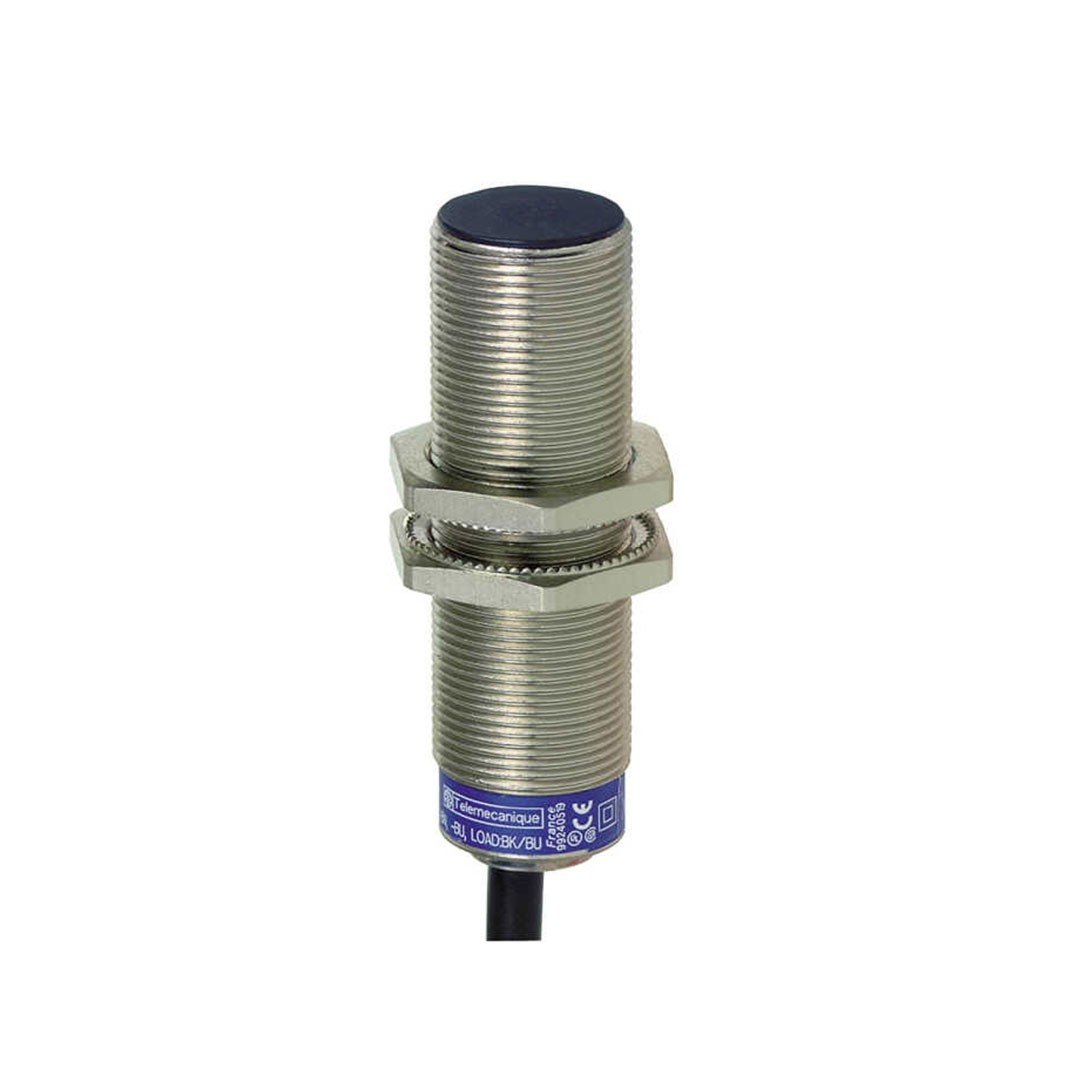

Telemecanique Sensors XS618B1NAL2 M18 L62mm-Sn8mm-2m Inductive Sensor

Product Series Telemecanique Inductive Proximity Sensors Xs
Serial Name General Purpose
Sensor type inductive proximity sensor
Device application
Sensor Name XS6
Sensor Design Cylinder M18
Size 62 mm
Body Type Fixed
Detector Burging Assembly Acceptance can be installed under plaster
Material metal
Type of the output signal hidden
Wiring Technique 3 Strong
[SN] Nominal Perception Distance 8 mm
Digital output function 1 Na
Output circuit type DC
Digital output type npn
Electric connection cable
Cable length 2 m
[US] Nominal Feeding Voltage 12 … 48 V DCile Reverse Polarity Protection
Switching capacity in MA <= 200 mA dcile overload and short circuit protection IP protection degree IP68 Double Insulation You were suitable for IP69K 40050 Complement Tooth type M18 x 1 Perception surface front PPS PPS Conservation Material Nickel Coated Rice Perception range> 4 … 8 mm
Working Zone 0… 6.4 mm
1 %of the differential movement SR … 15 %
Cable Editing 3 x 0.34 mm²
Wire insulation material PVR
Status LED output status: 1 LED (yellow)
Feeding voltage limits 10… 58 V DC
Switching Frequency <= 1000 Hz Maximum Voltage Drop <2 V (closed) Current consumption <= 10 mA load -free Maximum delay first up 10 ms Maximum Delay Response 0.3 ms Maximum Delay Recovery 0.7 ms Marking CE Gear length 52 mm Length 62 mm Product weight 0.12 kg Environment Product Certificates E2 CSA Ul Nominal Working Ambient Temperature -25… 70 ° C Storage environment conditions -40… 85 ° C Vibration resistance 25 gn amplitude = +/- 2 mm [area] (F = [area] 10… 55 Hz). Pulse resistance to 11 ms for 50 gnIEC 60068-2-27
