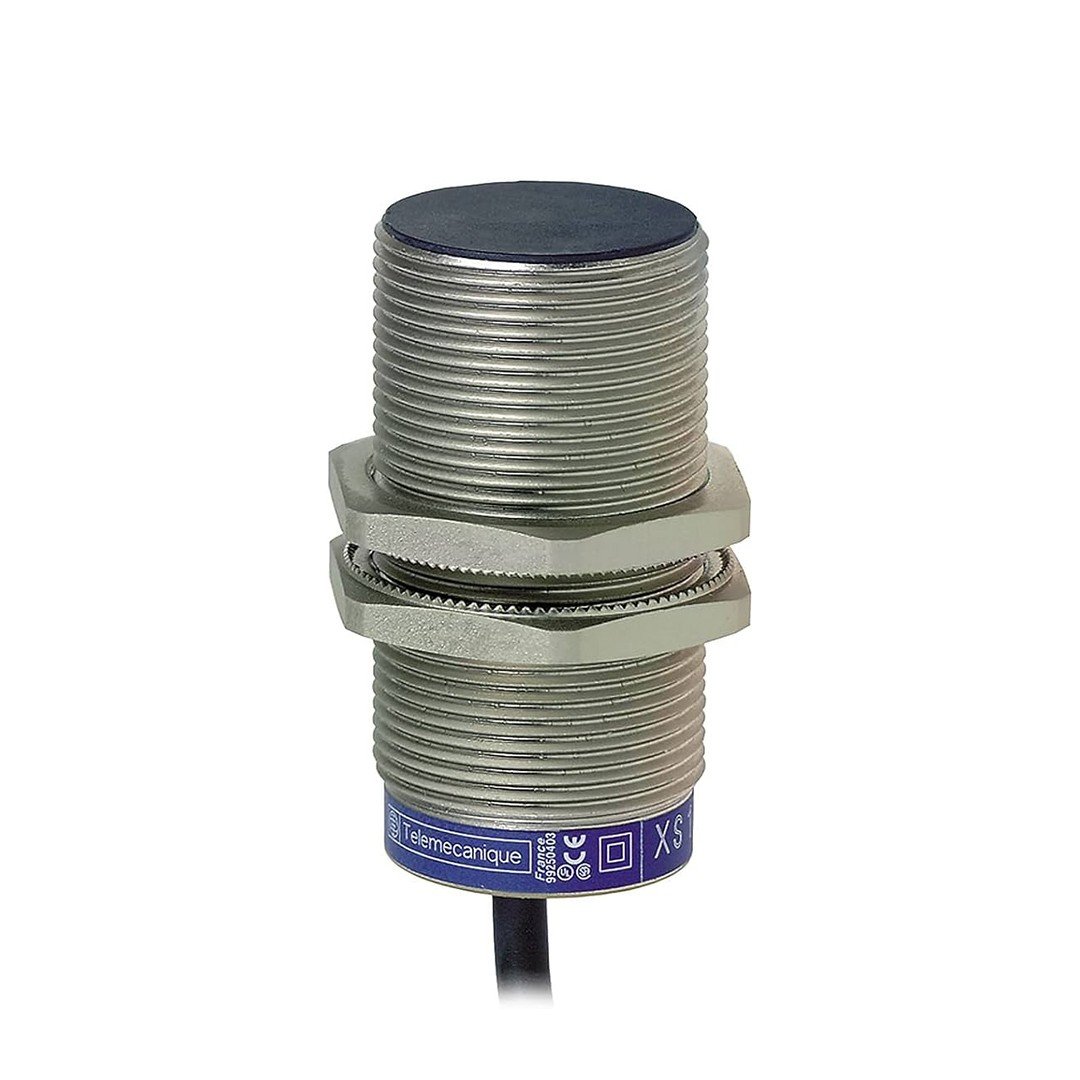

Telemecanique Sensors XS630B1MAL2 24/240VAC/DC 2M Cable Inductive Sensor

Product Series Telemecanique Inductive Proximity Sensors Xs
Serial Name General Purpose
Sensor type inductive proximity sensor
Sensor Name XS6
Sensor Design Cylinder M30
Size 62 mm
Body Type Fixed
Detector Burging Assembly Acceptance can be installed under plaster
Material metal
Type of the output signal hidden
Wiring Technique 2 Strong
[SN] Nominal Perception Distance 15 mm
Digital output function 1 Na
Output circuit type AC/DC
Electric connection cable
Cable length 2 m
[US] Nominal Feeding Voltage 24 … 240 V AC/DC 50/60 Hz
Switching capacity in MA 5 … 200 MA DC
5 … 300 mA ac
IP protection degree IP68 Double Insulation
You were suitable for IP69K 40050
