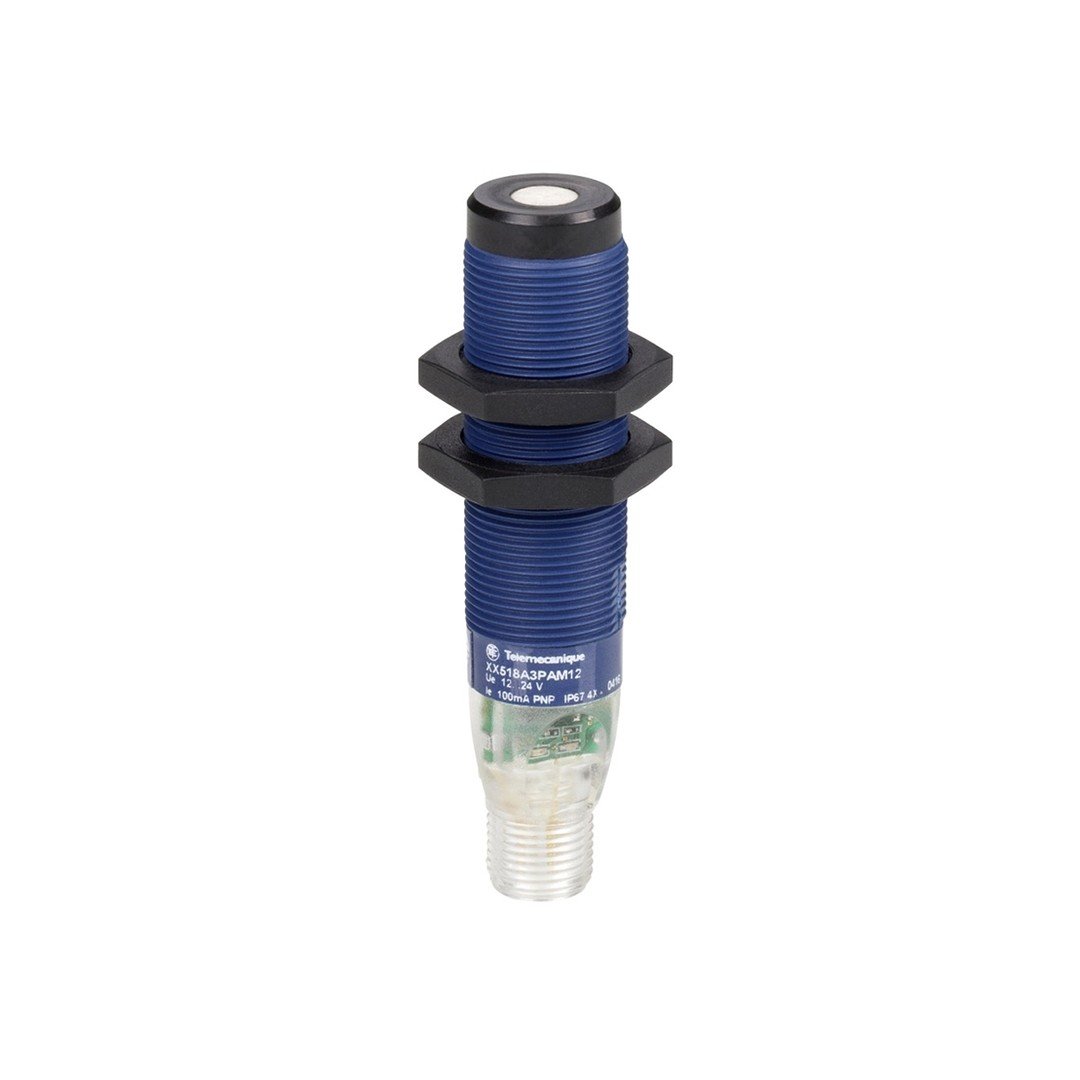

Telemecanique Sensors XX518A3PAM12 M18 Optimum Ultrasonic Sensor

Sensor type
:
Ultrasonic sensor
Serial name
:
General purpose
Sensor Name
:
Xx5
Sensor design
:
Cylinder M18
Detection system
:
Reflected from the object
[SN] Nominal Perception Distance
:
With 0.5 m adjustable remote Teach Pressing button
Material
:
Plastic
Type of the output signal
:
Hidden
Digital output function
:
1 NA
Wiring technique
:
3 stringed
Digital output type
:
PNP
[US] Nominal Nutrition Voltage
:
12 … 24 V DCile Reverse Polarity Protection
Electric connection
:
Men’s Connector M12 4 Pim
[SD] Detection Range
:
0,051… 0,508 m
Beam angle
:
6 °
IP protection degree
:
Suitable for IP67 IEC 60529
Complementary features
Front material
:
Epoxy
Tooth type
:
M18 x 1
Feeding voltage limits
:
10… 28 V DC
[Sa] safe working distance
:
0,051… 0,508 m (Teach mode)
Maximum differential movement
:
2.5 mm
Blind area
:
0… 51 mm
Transmission frequency
:
300 KHz
Repetition accuracy
:
1.27 %
90 ° deviation angle from the object to be detected
:
-7… 7 °
Minimum size of the perceived object
:
Cylinder diameter 2.5 mm at 0.15 m
Status LED
:
Feeding Open: 1 LED (Green)
Output Status: 1 LED (Yellow)
Current consumption
:
40 mA
Maximum switching current
:
Over 100 mails overload and short circuit protection
Maximum voltage drop
:
1 V
Switching frequency
:
<= 40 Hz Maximum delay first : 100 ms Maximum delay response : 10 ms Maximum delay recovery : 10 ms Marking : CE Gear length : 43 mm Height : 18 mm Width : 18 mm Depth : 79 mm Product weight : 0,033 kg
