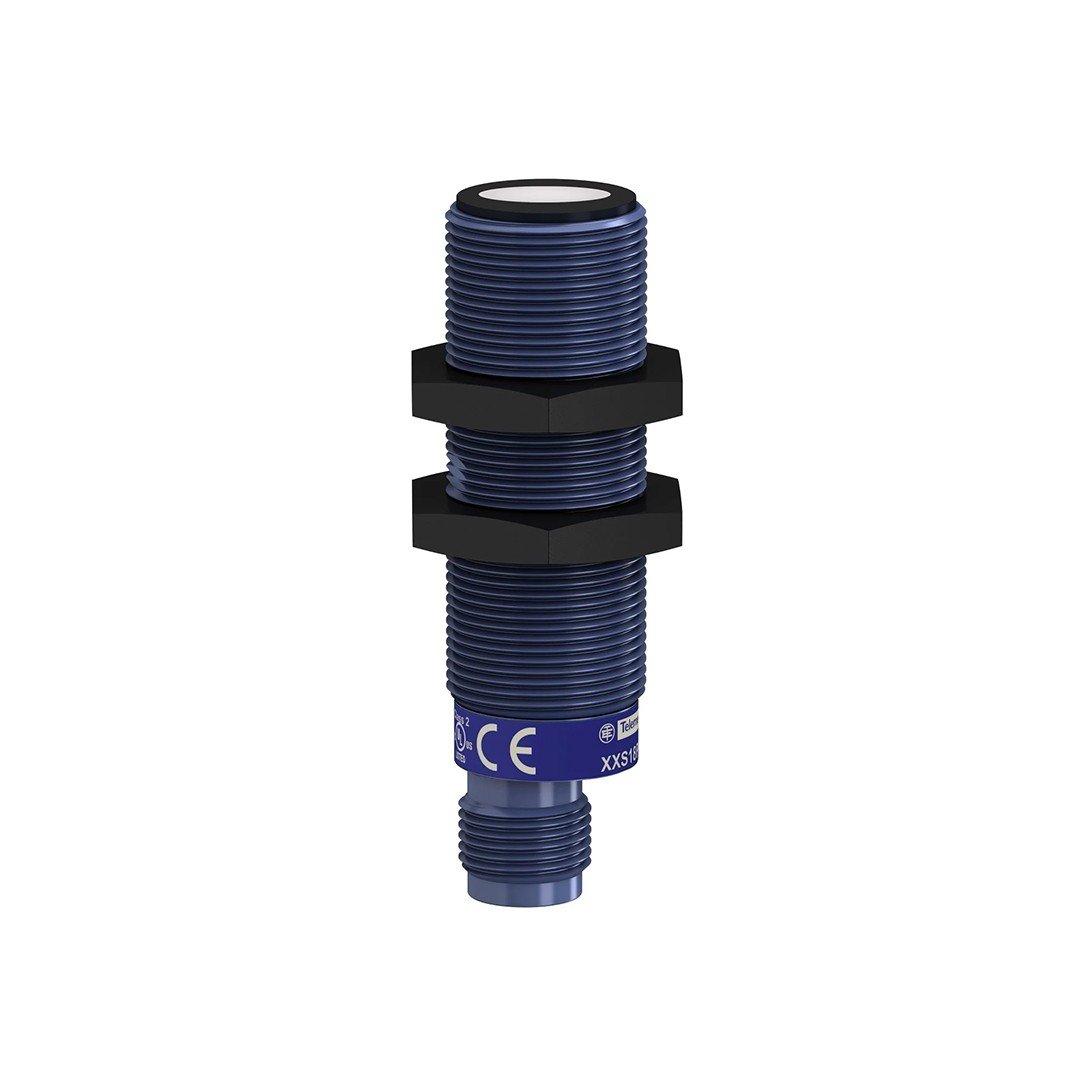

Telemecanique Sensors XXS18P1VM12 M18 SN: 1M Ultrasonic Sensor

Sensor type
:
Ultrasonic sensor
Serial name
:
General purpose
Sensor Name
:
XXS
Sensor design
:
Cylinder M18
Detection system
:
Reflected from the object
[SN] Nominal Perception Distance
:
With 1 m adjustable remote teach press button
1 M software with kit
Material
:
Plastic
Type of the output signal
:
Analogue
Wiring technique
:
5 stringed
Analog output function
:
0 … 10 V
[US] Nominal Nutrition Voltage
:
24 V DCile Reverse Polarity Protection
Electric connection
:
Men’s Connector M12 5 Pim
[SD] Detection Range
:
0,105… 1 m
IP protection degree
:
IC65 IEC 60529
IP67
Complementary features
Conservation material
:
PBT
Feeding voltage limits
:
14… 30 V DC
[Sa] safe working distance
:
0,105… 1 M (Teach Mode)
Blind area
:
105 mm
Transmission frequency
:
200 kHz
Repetition accuracy
:
0.1 %
90 ° deviation angle from the object to be detected
:
-10… 10 °
Minimum size of the perceived object
:
Cylinder diameter 600 mm per 1 mm
Status LED
:
Output Status: 1 LED (Yellow)
Echo State: 1 LED (Green)
Current consumption
:
30 mA
Maximum switching capacity
:
> = 1 kohm overload and short circuit protection
Adjustment
:
Teach mode
Configuration software
Maximum delay first
:
180 ms
Maximum delay recovery
:
100 ms
Marking
:
CE
Gear length
:
45 mm
Height
:
18 mm
Width
:
18 mm
Depth
:
64 mm
Product weight
:
0,033 kg
