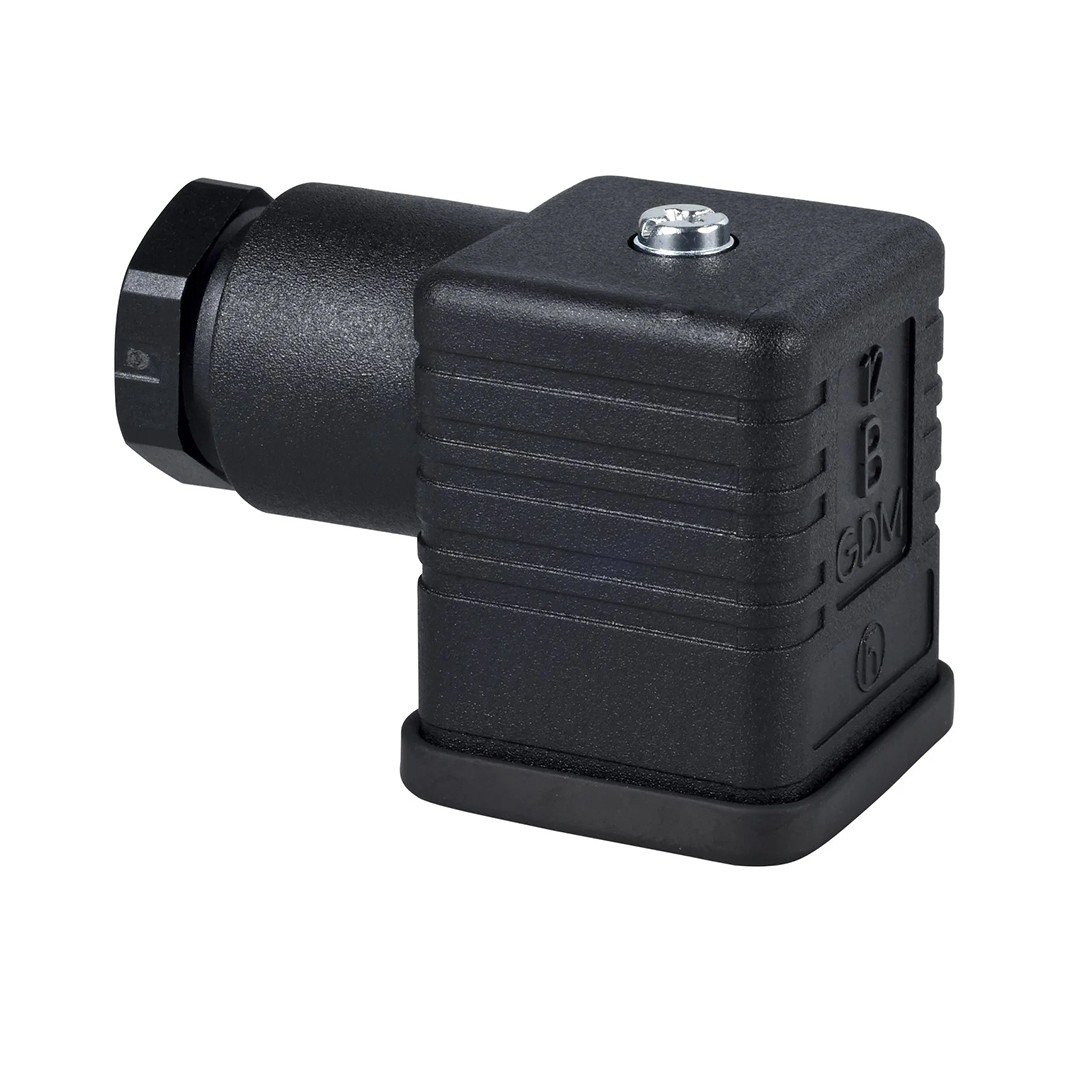

Telemecanique Sensors XZCCC43FCP40B 4 -pin Female DIN43650A elbow connector

Product Features
Product series
:
Telemecanique Cable components
Accessory / SEPARATE PART Category
:
Cable accessories
Accessory / SEPARATE PART TYPE
:
Connector
Electric connection
:
Elbow female connector DIN 43650 A, 4 pim
Status LED
:
Without
Cable connection
:
Screw terminal / wire size <1,5 mm² / Clamping capacity 7… 10 mm Complementary features Cable rakor : PG 11 Cable Connector Installation : Locking screw [UE] Nominal Working Voltage : 250 V AC Nominal Current (IR) : 16 A Conservation material : Plastic Minimum insulation resistance : 0.1 GΩ Contact resistance : 4000 µohm Product weight : 0,035 kg
