Specs at a glance
Max. measurement error: Acoustic density: ±0.01g/cm³
Temperature: ±0.5K
Sound velocity: +-2m/s
Measuring range: Concentration According to concentration app data sheet, maximum 0 to 100 %
Sound velocity 600 to 2000 m/s
Temperature, maximum 0 to +100 °C (32 to +212 °F)
Acoustic density 0.7 to 1.5 g/cm³
Medium temperature range: 0 to 120°C (32 to 248 °F)
Process temperature: 0 to 120°C (32 to 248 °F)
Max. process pressure: max. 16 bar at 20 °C (232 psi at 68 °F)
Process pressure: max. 16 bar at 20 °C (232 psi at 68 °F)
Wetted materials: Stainless steel1.4404 (316L)
—————————————-
Field of application
Endress Hauser’s

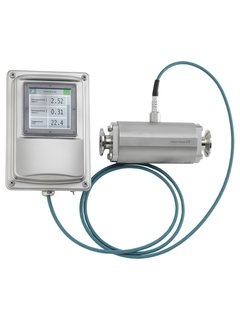

Teqwave H is ideal for real-time liquid analysis in hygienic applications like spirits and soft drink production. End customers and equipment manufacturers value its highly accurate in situ concentration measurement and hygienic design. Teqwave reduces the operational expenditure by monitoring various measuring parameters at once. Match your Teqwave transmitter perfectly to your production needs by flexible definition and extension of your application range.
• The acoustic waveguide measures precisely and reliably, even the smallest changes are detected
• Continuous quality monitoring of beverages and in cleaning processes
• Nominal diameter: DN 25 (1″)

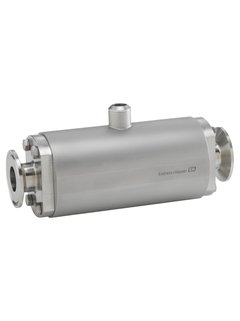

• Sensor housing made of stainless steel (3-A, EHEDG)
• Accurate and independent of flow profile
• Industry-compliant, easy installation via DIN rail and pipe mounting set

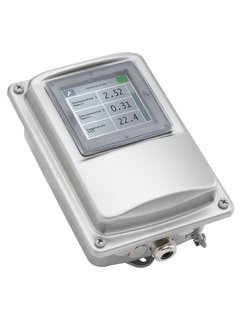

• 3.5″ TFT color touch screen or LED indication
• 4-20 mA, Modbus TCP
Device properties
