Specs at a glance
Max. measurement error: Density: ±0.01g/cm³
Temperature: ±0.5K
Sound velocity: 2m/s
Measuring range: Concentration According to concentration app data sheet, maximum 0 to 100 %
Sound velocity 600 to 2000 m/s
Temperature maximum 0 to +100 °C (32 to +212 °F)
Acoustic Density 0.7 to 1.5 g/cm³
Medium temperature range: 0 to 100 °C (32 to 212 °F)
Process temperature: 0 to 100 °C (32 to 212 °F)
Max. process pressure: max. 16 bar at 20 °C (232 psi at 68 °F)
Process pressure: max. 16 bar at 20 °C (232 psi at 68 °F)
Wetted materials: Stainless steel 1.4571 (316 Ti)
—————————————-
Field of application
Endress Hauser’s

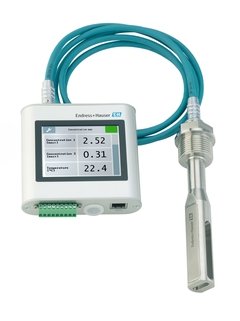

The insertion measuring device Teqwave I was developed for accurate real-time liquid analysis in vessels and larger pipes. Dedicated to in situ concentration measurement, Teqwave monitors various measuring parameters at once, and thus reduces operational expenditure. Match your Teqwave transmitter perfectly to your production needs: You can flexibly define and extend your application range.
• The acoustic waveguide measures precisely and reliably, even the smallest changes are detected
• Continuous concentration measurement of liquids in vessels or large pipes.
• Insertion length: 180 mm (7 in) or 500 mm (20 in)
• Accurate and independent of flow profile
• Industry-compliant, easy installation via DIN rail
• 3.5″ TFT color touch screen or LED indication
• 4-20 mA, Modbus TCP
