Specs at a glance
Max. process pressure (static): depending on process connection up to 2500 lbs
Maximum standard immersion length: 500 mm (19,69″)
Max. immersion length on request: 500 mm (19,69″)
—————————————-
Field of application
Endress Hauser’s

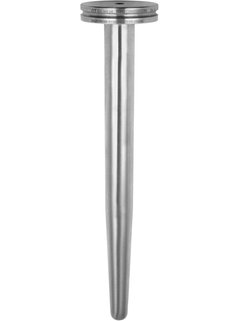

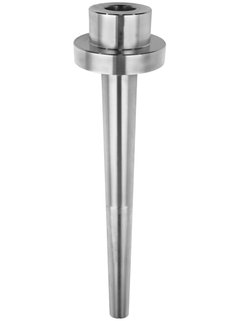

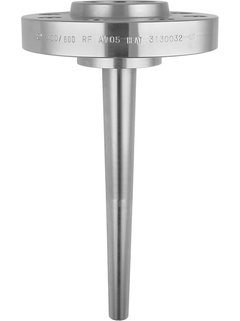

It is a specially designed thermowell for thermometer installation. The thermowell shaft and the process connection flange are not interconnected. For installation, the collar of the thermowell is fitted between two flanges; on the one hand it is fitted onto the thermowell and on the other hand it is bolted to the connection nozzle on the process side. Many different flange versions are available to secure the unit to the permanently installed nozzle flange. It is machined from solid bar stock.
