Specs at a glance
Accuracy: +/- 4 mm or +/- 0,2 % of set measuring range
Process temperature: -40 °C … 80 °C
(-40 °F … 176 °F)
Process pressure / max. overpressure limit: 0.7 bar … 2.5 bar abs
(10 psi … 36 psi)
Max. measurement distance: Liquids: 10 m (33 ft),
Solids: 5 m (16 ft)
Main wetted parts: PVDF
—————————————-
Field of application
Endress Hauser’s

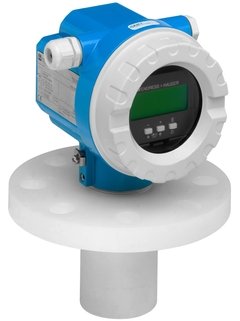

The Prosonic FMU42 sensor is suited for non-contact level measurement in fluids, pastes, coarse bulk material and flow measurement in open channels or at weirs. The two-wire or four-wire compact transmitter can be used in applications with storage tanks, agitators, on stockpiles and conveyor belts. The envelope curve can be shown on the on-site display for simple diagnosis. Linearization function (up to 32 points) for conversion of the measured value into any unit of length, volume or flow rate.
• Process connection: Flange
• Temperature: -40 to +80°C (-40 to +176°F)
• Pressure: +0.7 to +2.5bar (+10 to +36psi)
• Maximum measuring distance: Liquids 10m (33ft), Solids 5m (16ft)
• Blocking distance: Liquids and Solids 0.4m (1.3ft)
• International explosion protection certificates
