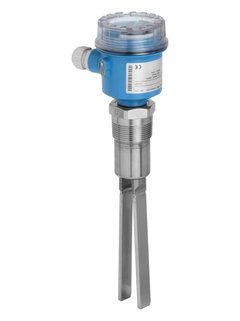

Vibronic Point level detection Soliphant FTM50

Specs at a glance

Process temperature: -50°C … 280°C
(-60°F … 540°F)
Process pressure / max. overpressure limit: Vacuum … 25 bar
(Vacuum … 360 psi)
Min. density of medium: Standard fork: 10 g/l
Short fork: 50 g/l

—————————————-

Field of application

Soliphant FTM50 is a robust point level switch for use in silos containing fine-grained or powdery solids even with a low bulk density. Suitable for a wide range of applications with international certificates for use in dust or gas hazardous areas. Available with polished fork and stainless steel housing with Tri-Clamp or with aluminum housing and coated fork. Maintenance-free device for use in typical applications like: cereals, flour, cocoa, sugar, animal feed, dye powder, chalk.

• Process connections: Threads, flanges and hygienic connection (Tri-Clamp)
• Temperature: -50 to +280°C (-60 to +540°F)
• Pressure: -1 to +25bar (-14.5 to +360psi)
• Sensor length: 145mm, 200mm
• Sensor material: 316L (3,2µm, 0,8µm, PTFE coated, ETFE coated)
• International explosion protection certificates
