ZB4BZ009 – Schneider Electric Collar, For Use With XB4 Series

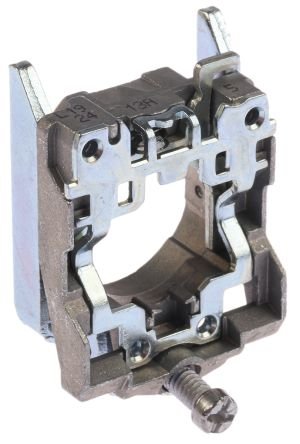

Schneider Metal Fixing Collar Pillar – ZB4BZ009Created and designed for printed circuit boards, Schneider’s metal fixing collar offers users a solution for mounting and fixing accessories. Forming part of the Harmony XB4 range, this fixing collar must be used in conjunction with adaptor ZBZ010.Features & BenefitsThe collar weighs 0.003 gThe mounting hole size of 22 mmIt is a green premium productDesigned to be used with the Harmony XB4 series of push-button switchesComprised of a strong metal material enabling the component to hard-wearing and long-lastingStandard head typeMercury and toxic heavy metal freeContributes to a simple and secure setupMetallic grey in colour offering an aesthetically pleasing industrial finishSchneider Electric Protective Collar, Metal Material, 6g Weight – Harmony XB4 Series – ZB4BZ009Give your push button switch the backing it needs with this protective collar from Schneider Electric. It gives you a simple way to install your component onto a board. The unit also helps to secure the switch in place to reduce the risk of accidental disconnections and minimise downtime. A cutout diameter of 22mm makes it a sure fit for many standard push button installations. Thanks to its metal construction, the collar resists impact and wear, so you can rely on it to roll with the punches in demanding environments.Features & Benefits
• Light weight of 6g puts minimal strain on your equipment
• Pre-drilled holes save time and effort during installationApplications
• Consumer electronics
• Commercial and domestic appliances
• Industrial control panels
• Medical devicesWhat push buttons can I use this protective collar with?For ease of assembly, this protective collar is designed for use with push buttons in the Harmony XB4 series.How do I mount this protective collar onto a PCB?Attach the collar to an adapter (815-1709), then plug the assembly into your board.
