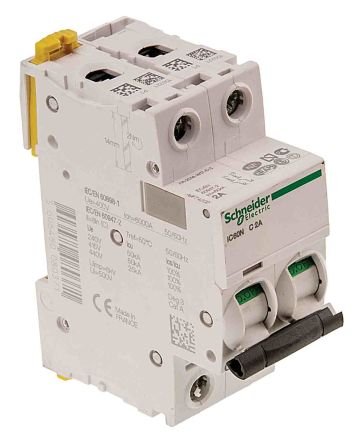

Breaking Capacity Schneider Electric Acti 9 iC60N MCB, 2P, 1A Curve C, 100 → 130V AC, 12 → 144V DC, 6 kA A9F74201

Schneider Electric Acti9 i60N MCBs 2 PoleActi 9 iC60N series multi-standard circuit breakers combine circuit protection against short circuit currents and circuit protection against overload currents it also protects people against indirect contact with TN and IT neutral systems. Fully compliant with standards IEC/EN 60898 and IEC/EN 60947-2. ACTi 9 is fully tested, approved and certified by national and international third parties. It guarantees that your installation is safe and compliant with all relevant safety standards which demonstrates to your customers that you use industry-approved materials and best practices. These MCBs are normally used for high inductive loads where switching surges are high. Providing essential protection in industrial and commercial buildings, these miniature circuit breakers work especially well in polluted environments and networks.VisiSafe guarantees the downstream circuit is always safe regardless of overvoltage conditions, even in the most demanding environments; the green strip indicates the safe position of contacts.VisiTrip red window on the front face indicates fault tripping allowing fast diagnosis, resolution, and reclosing loads for easier building management and reduced downtimeBenefits and FeaturesDownstream circuit is always safe Class insulation ensures continuous protection for both operators and unqualified persons. Insulated terminals (IP20) Highly durable with robust connections that provide twice the standard tighteningProvide greater continuity of service thanks to VisiTrip. Double clip dismounting with comb busbar in placeStandardsIEC 60898 – Relates to Low Voltage Circuit Breakers for use in household and similarInstallations. In the UK traditionally known as miniature circuit breakers (MCB’s).IEC 60947-2 Relates to Low Voltage Circuit Breakers for use in industrial and similarInstallations. In the UK traditionally known as moulded case circuit breakers (MCCB’s) and also air circuit breakers (ACB’s).
Q: What is the differences in the Tripping Curves B, C, and D?
A: Curve
B:
Tripping: 3 to 5 times the rated current.
Applications: protection of generators, persons, very long cables Curve
C:
Tripping: 5 to 10 times the rated
currentApplications: protection of circuits and general applications Curve
D:
Tripping: 10 to 14 times the rated current
Applications: protection of high surge circuits, welders, transformers and motorsSchneider Electric Miniature Circuit Breaker – A9F74201.Forms part of the Acti 9 range of productsPredominantly known as Disbo iC602 Poles, 2 protected polesAC/DC network with thermal-magnetic trip unit technologyD curve modeThe utilisation category of the A9F74201 miniature circuit breaker is Category A conforming to EN/IEC 60947-2. 50/60 Hz network frequencyMagnetic tripping limit – 8 x In +/- 20 %
