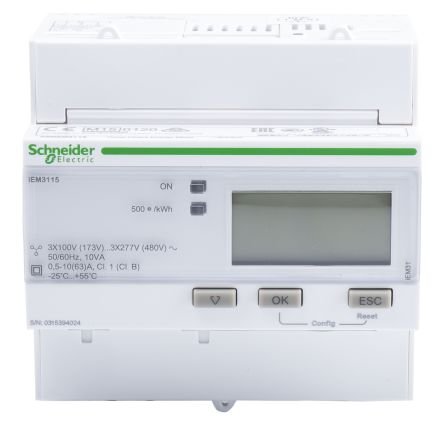

A9MEM3115 – Schneider Electric 1, 3 Phase LCD Energy Meter

Acti9 iEM3100 Energy MetersThe iME3100 energy measurement counter is used to measure the active energy consumed by single-phase, three-phase or three-phase + neutral type electrical circuits.Operating
voltage: 3 x 100/173 Vac (50/60 Hz) → 3 x 277/480 Vac (50/60 Hz)
Imax: 63 AIP40 front panel, IP20 casingOvervoltage and measurement category III, degree of pollution 2Electromagnetic environmental
class: E2Mechanical environmental
class: M1Operating
temperature: -25 → + 55 °
CModels:
iEM3100: kWh meter with partial
counteriEM3110: kWh meter with partial counter and pulse output. MID
certifiediEM3115: multi-tariff meter controlled by digital input or internal clock, MID
certifiediEM3150: kWh meter with partial counter and current, voltage, power measurement. Modbus
communicationiEM3155: energy meter, four quadrant, multi-tariffs with partial counter and current, voltage, power measurement, Modbus communication, digital I/O, MID certifiedStandardsIEC 61557-12, IEC 62053-21
