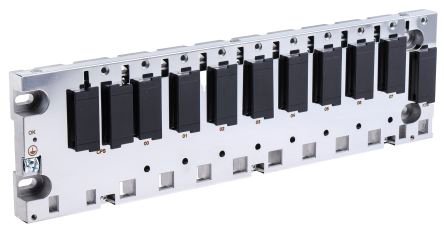

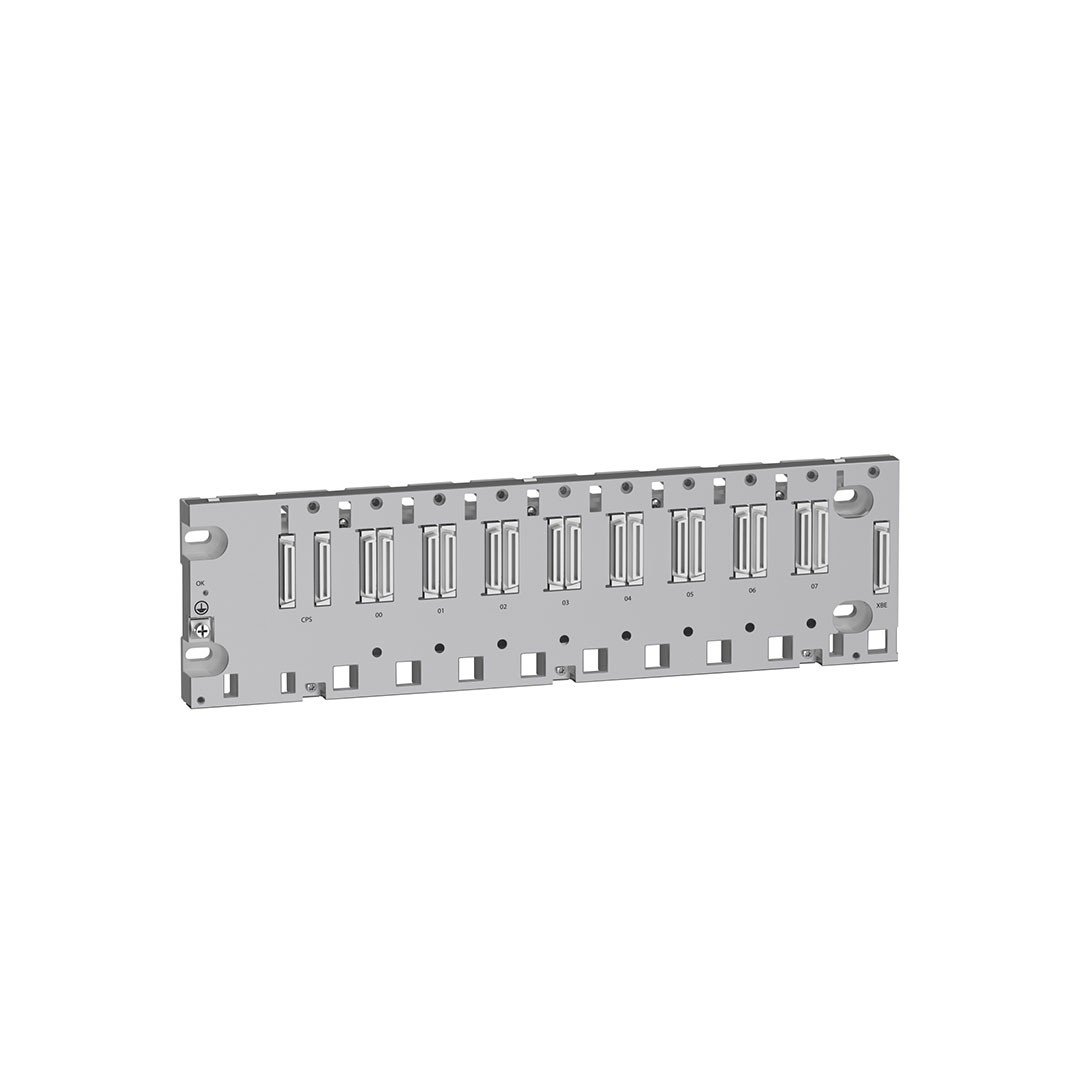

Schneider BMEXBP0800 8

Product Series Modicon X80
accessory
Number of Slots 8 Bus X + Ethernet
Product Compatibility G/Ç Module
BMX processor
Special Application Module
BMXCPS Power Feeding
BME Processor
Power consumption in W 211 MW 3,3 V DC
3.9 W 24 V DC
Electric Connection 1 Connector (XBE) Expansion Module
fixing mode with 4 screws – diameter: 4.32… 6,35 mm, assembly location panel
4 m6 screw, assembly place plate
With clip, assembly location 35 mm symmetric DIN RAYI
Current Consumption 64 MA -3.3 V DC
164 MA -DC DC
MTBF reliability 1297516 h
Product weight 1.06 kg
