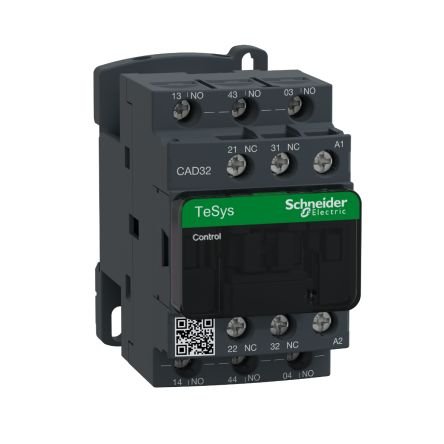

Schneider CAD32P7 – TeSys CA CAD Contactor, 10 A, 2NO + 2NC, 690 V ac

Schneider Electric CAD32P7TeSys Deca control relay, 5 contacts (3NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 230V 50/60Hz AC control circuit, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh).Features & Benefits
• Mechanical durability of up to 30 million cycles for reliability throughout its extended service life
• Insulated to protect against electric shocks
• Compact dimensions of 77 (H) x 45 (W) x 84mm (D) to maximise panel packing efficiencyApplications
• Lighting systems
• Cooling lines
• Power generation plants
• Automotive manufacturingIs the contactor rail mountable?Yes, for quick and easy assembly, you can clip this device onto a 35mm DIN rail. Alternatively, you can screw-fix it to a plate.
