Specs at a glance
Accuracy: repeatablity 0,1%
Process temperature: -80°C…200°C
-112°F…392°F
Process pressure / max. overpressure limit: Vacuum … 100 bar
(Vaccum … 1450 psi)
Max. measurement distance: 0.42 m … 10.0 m
(1.38 ft … 33 ft)
Main wetted parts: Insulation material: FEP,PFA
316L
—————————————-
Field of application
Endress Hauser’s

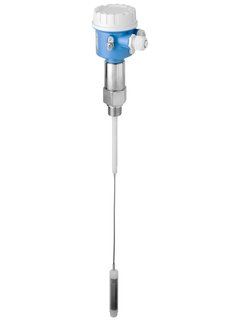

Liquicap FMI52 is a reliable fully insulated rope probe for continuous level monitoring in liquids, particularly in small tanks, build-up forming media and extremely high temperatures – especially for large measuring ranges. The measurement is independent of the dielectric constant (dc). Used in conjunction with Fieldgate FXA320 (remote measured value interrogation using Internet technology), Liquicap is an ideal solution for Inventory Management Solutions.
• Process connections: Flanges and threads
• Process pressure: Vacuum to +100bar (vacuum to 1,450psi)
• Measuring range: 0.42 to 10.0m (1.38 to 33ft)
• Temperature: -80 to +200°C (-112 to +392°F)
• International explosion protection certificates, overfill prevention WHG, SIL, hygienic certificates, marine approvals
